* Thin and transparent, simple appearance,
Perfect integration with the site environment
Product Details:
|
Color: | White Black | Panel Size: | 1000*1000mm 1000*500mm 500*500mm |
---|---|---|---|
Pixel Pitch: | P2.8/3.9/7.8/10/15/20 | Display Function: | Video Picture Graphic Text Message |
Brightness: | 800~5000nits | Warranty: | 2-5 Years |
Refresh Rate: | 3840Hz | Led Type: | SMD1921 SMD1415 |
Weight: | 5kg | Input Voltage: | AC 100-240V 50/60Hz |
Life Span: | LED>100000Hours | ||
High Light: | 4000nits Outdoor Transparent Led Screen,Outdoor Transparent Led Screen Curtain,Outdoor p4 81 led display |

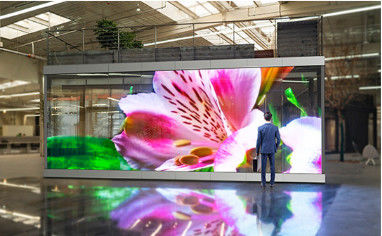

4000nits Indoor Mesh Outdoor Transparent Led Screen Curtain P4.81 Led Display
Advantages
|
1. Transparent screen: front lighting transparent led screen adoptsmodular design, with high transparency, energy saving and environmental protection.
2. can be taken Installation methods such as lifting and standing.
3. There are several standard sizes of 1000x1000mm, 1000x500mm,500x500mm to fit different project sizes.
4. TS Series Outdoor can be truly achieved IP6X protection level
High waterproof.
![]() |
Specifications
|
|
|
|
|||
Mode
|
TI 2.84
|
TI 3.91
|
TI 7.81
|
|||
LEDs
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
|||
LED type
|
SMD1415
|
SMD1921
|
SMD1921
|
|||
Pixel pitch
|
W2.84mm*H6.25mm
|
W3.91mm*H7.81mm
|
W7.81mm*H7.81mm
|
|||
Unit size
|
W1000mm*H500mm*D50mm
|
|
|
|||
Unit resolution
|
352*80dots
|
256*64 dots
|
128*64 dots
|
|||
Resolution
|
56320dots/㎡
|
32768dots/㎡
|
16384dots/㎡
|
|||
Transparency rate
|
60%
|
70%
|
60%
|
|||
Brightness
|
3000CD/㎡
|
800/1500/4000/5000CD/㎡
|
4000CD/㎡
|
|||
Cabinet Weight
|
5KG
|
5KG
|
6KG
|
|||
Max consumption
|
800W/㎡
|
|
|
|||
Adv consumption
|
240W/㎡
|
|
|
|||
Refresh rate
|
≥3851Hz
|
≥3840Hz
|
≥1920Hz
|
|||
Working temperature
|
﹣10℃~51℃
|
﹣10℃~40℃
|
﹣10℃~40℃
|
|||
Life time
|
|
≥100,000 hours
|
|
|||
Input voltage
|
AC170~240V
|
|
|
|||
Mode
|
TS10.42
|
TS15.625
|
TS20
|
|||
LEDs
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
|||
LED type
|
SMD1921
|
SMD3535
|
SMD3535
|
|||
Pixel pitch
|
W10.42mm*H10.42mm
|
W15.625mm*H15.625mm
|
W10mm*H20mm
|
|||
Unit size
|
W1000mm*H500mm*D50mm
|
|
|
|||
Unit resolution
|
96*48dots
|
64*32dots
|
48*24dots
|
|||
Resolution
|
9216dots/㎡
|
4096dots/㎡
|
2304dots/㎡
|
|||
Transparency rate
|
65%
|
75%
|
85%
|
|||
Brightness
|
4000CD/㎡
|
4000CD/㎡
|
4000CD/㎡
|
|||
Cabinet Weight
|
6KG
|
6KG
|
6KG
|
|||
Max consumption
|
700W/㎡
|
600W/㎡
|
500W/㎡
|
|||
Adv consumption
|
200W/㎡
|
180W/㎡
|
150W/㎡
|
|||
Refresh rate
|
≥3851Hz
|
≥3840Hz
|
≥1920Hz
|
|||
Working temperature
|
﹣10℃~51℃
|
﹣10℃~40℃
|
﹣10℃~40℃
|
|||
Life time
|
|
≥100,000 hours
|
|
|||
Input voltage
|
AC170~240V
|
|
|
