Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5

Certification
China Shenzhen Longvision Technology Co., Ltd. certification
China Shenzhen Longvision Technology Co., Ltd. certification
I'm Online Chat Now

Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5

Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5
Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5

Large Image :  Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5

Product Details:
Place of Origin: Guangdong, China
Brand Name: Longvision
Certification: CE FCC UL ROHS
Model Number: PG Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $929.00- $1799/Sets
Packaging Details: wooden/carton/flight case
Delivery Time: 5-15 days
Payment Terms: D/P, T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000 Set/Sets per Month

Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5

Description
Display Function: Video, Animation, Graphics Brightness: 1000nits
Net. Weight/set: 45Kg Thickness: 45mm
Life Span: LED>100000Hours IP Rate: IP45
Warranty: 2-5 Years Maximum Power(w/set): 800W
Wireless Configuration: Lan,WiFi,4G,USB
High Light:

GOB Smart Led Poster Display

,

P1.8 Smart Led Poster Display

,

GOB smart led poster

Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5



What is GOB?


GOB packaging technology is also called "Glue On Board", which uses the most advanced

transparent material in China to package the substrate and its LED packaging unit to form

effective protection.
This material not only has super high transparency, but also has super thermal conductivity.

The GOB small pitch can be adapted to any harsh environment, realizing the characteristics of

moisture-proof, waterproof, dust-proof, impact-proof, UV-resistant, etc.
GOB display products are generally aged for 72 hours before the product is assembled, and the

lamps are tested. after pouring, aging for another 24 hours, reconfirm the product quality.





Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 0

Multiple Installations

High-density digital LED media player Suitable for hanging, wall-mounted, base-standing, bracket standing, and creative splicing installation, as well as horizontal placement installation.
Break the traditional installation method and make the display smarter.


Anti-COLLISION,
avoid the damage caused to LEDs during transportation or handling
Anti-KNOCK,
avoid damage to the product caused by collision with other people or objects





Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 1


Dust-proof.

LEDs can’t meet the dust since that it has glue in front.

Scrubbing.

After accumulating dust or hand marks on the surface, it can be scrubbed








Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 2

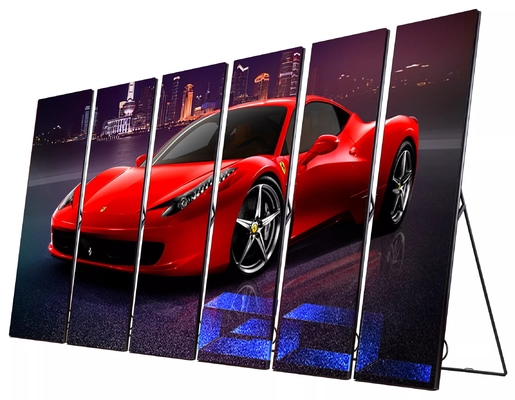

Seamless splice.Display can be connected together fastly with
varies quantities.Maximum connection is 10x1 units.



Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 3


16:9 display ratio.With 5 units connection,can get 16:9 display ration,perfect match with
most video sources

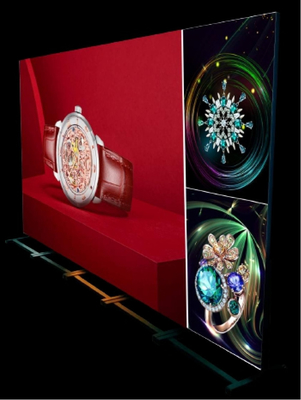

Split screen display.The display area can be splited for displaying different contents






Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 4


DIY installation.Support transverse splicing.
Even supportspecial shape splicing.such as M/W ,fan blade,sawtooth shape etc.





Specifications













Model
P2.5
P2.5
P3
P3
Pixel Pitch
2.5mm
2.5mm
3mm
3mm
Application
Indoor



LED Configuration
SMD2121
SMD2121
SMD2121
SMD2121
Pixel Density
160,000dots/㎡
160,000dots/㎡
111,111dots/㎡
111,111dots/㎡
Module size
160X160mm
160X160mm
192X192mm
192X192mm
Module Resolution
64X64dot
64X64dot
64X64dot
64X64dot
Cabinet Size
640X1920X38mm
960X1920X38mm
576X1920X38mm
768X1920X38mm
Cabinet Resolution
256X768dots
384X768dots
192X640dots
256X640dots
Cabinet Weight
35kg
50kg
30kg
40kg
IP Rating ( front/back)
IP40
IP40
IP40
IP40
Brightness Intensity
≥1000cd/㎡
≥1000cd/㎡
≥1000cd/㎡
≥1000cd/㎡
Viewing Angle
140°
140°
140°
140°
View Distance
>2m
>2m
>3m
>3m
Max./Avg. Power Consumption(W/m²)
900W/300W
1500W/500W
800W/260W
1100W/360W
Refresh Frequency
≥3840HZ
≥3840HZ
≥3840HZ
≥3840HZ
Control Mode
Synchronous display with control PC by DVI



Operation Power
AC100/240 50/60HZ



Operating Condition
- 20℃~+50℃, 10~90% RH












Applications:



Commercial LED display screen 2.5mm applicationThis indoor movable adverts led poster

widely use for shops, hotel, wedding, meeting guidence, new product presentation, autocar 4S shop,

high-end cloth chain shops, metro station, airport, etc. This led poster is also called mirror led display.



Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 5



Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 6



Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 7

Digital GOB Waterproof Smart Led Poster Display Screen P1.8 P2 P2.5 8







FAQ:


Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
