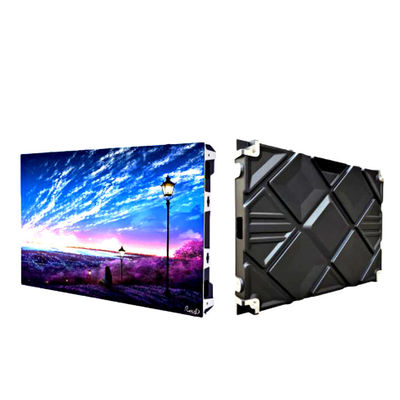

Product Details:
|
| Panel Size: | 640mm*480mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Module Size: | 320mm*160mm | Brightness: | 700-1000nits |
| LED Type: | SMD1515 (3in1)/ 1212 | Refresh Rate: | 3840-7680Hz |
| Weight: | 7kg | Input Voltage: | AC110V - AC240V |
| Lifespan: | 100 000 Hours | ||
| High Light: | P1.8 Fine Pitch Led Display,P1.2 Fine Pitch Led Display,P1.5 led video wall pixel pitch |
||
|
Advantages
|
|
1. High Precision: all-in-one design with die-casting aluminum fashioning technology
2. 100% Front Maintenance:all components dismount from front side, fast and easy
3. Wireless Connection: adopt hard-wired connector, support hot plug to dismounting easily
4. Fast Heat Dissipation: multi-point heat emission holes speed up efficiency of heat dissipation
|
|
Specifications
|
|
|
|
|
|
|||||
|
Model
|
VA 1.2
|
VA 1.5
|
VA 1.6
|
VA 1.8
|
VA 1.8
|
|||||
|
Pixel Pitch
|
1.25
|
1.53
|
1.667
|
1.83
|
1.86
|
|||||
|
Application
|
UHD Display
|
|
|
|
|
|||||
|
Pixel Density
|
640000 dots/m²
|
427186 dots/m²
|
360000 dots/m²
|
298605 dots/m²
|
289050
dots/m²
|
|||||
|
LED Type
|
SMD1010
|
SMD1212
|
SMD1212
|
SMD1515
|
SMD1515
|
|||||
|
Brightness
|
＞700cd/m²
|
＞700cd/m²
|
＞700cd/m²
|
＞700cd/m²
|
＞700cd/m²
|
|||||
|
Module Size
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
|||||
|
Module Resolution
|
256*128
|
208*104
|
192*96
|
174*87
|
172*86
|
|||||
|
Cabinet Size
|
640*480 mm
|
640*480 mm
|
640*480 mm
|
640*480 mm
|
640*480 mm
|
|||||
|
Cabinet Resolution
|
512*384
|
416*312
|
384*288
|
348*261
|
344*258
|
|||||
|
Cabinet Material
|
Die-casting Aluminum
|
|
|
|
|
|||||
|
Cabinet Weight
|
7kg/cbn
|
|
|
|
|
|||||
|
Viewing Angle
|
H:160° / V:140°
|
|
|
|
|
|||||
|
Refresh Rate
|
≥3840Hz
|
|
|
|
|
|||||
|
Viewing Distance
|
1.2m~15m
|
1.5m~20m
|
1.6m~25m
|
1.8m~30m
|
1.8m~30m
|
|||||
|
Gray Scale
|
14~16bit
|
|
|
|
|
|||||
|
Max Power Consumption
|
700W/m²
|
700W/m²
|
800W/m²
|
800W/m²
|
800W/m²
|
|||||
|
Avg. Power Consumption
|
350W/m²
|
350W/m²
|
400W/m²
|
400W/m²
|
400W/m²
|
|||||
|
Power Input
|
AC 100～240V
|
|
|
|
|
|||||
|
Frequency
|
50～60Hz
|
|
|
|
|
|||||
|
Maintenance
|
100% Front Service
|
|
|
|
|
|||||
|
Operating Temperature
|
-20℃～50℃
|
|
|
|
|
|||||
|
Operating Humidity
|
10%～95%
|
|
|
|
|
|||||
|
Lifetime
|
100,000H
|
|
|
|
|
|||||
