Product Details:
|
| Application: | Indoor TV ,meeting Room, Shopping Mall, Church, Showing Room | Panel Size: | 640mm*480mm |
|---|---|---|---|
| Pixel Pitch: | P1.2 P1.5 P1.8 | Material: | Die-casting Aluminum |
| Warranty: | 2 Years | LED Type: | SMD1515 (3in1)/ 1212 |
| Voltage: | AC100~240v 5O/60HZ | Weight: | 6.5 Kg |
| Package: | Plywood Wooden Case | ||
| High Light: | P1.5 pixel pitch led screen,P1.8 pixel pitch led screen,P1.8 fine pitch display |
||
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
Advantage:
1. Ultra-light, Ultra-thin- Magnesium alloy die casting, single cabinet weight is only 6KG.
Cabinet size:640mm*480mm*50mm
2. Wide Viewing Angle ·Viewing Angle: 160°(horz.), 160°(vert.)
3. Excellent Visual Effect: Low brightness with high gray level and high refresh rate,
stable dynamic display effect and the visual experience is more comfortable.
4. High Reliability: Power and signal dual backup
|
Specifications
|
|
|
|
|
|
|||||
|
Model
|
VA 1.2
|
VA 1.5
|
VA 1.6
|
VA 1.8
|
VA 1.8
|
|||||
|
Pixel Pitch
|
1.25
|
1.53
|
1.667
|
1.83
|
1.86
|
|||||
|
Application
|
UHD Display
|
|
|
|
|
|||||
|
Pixel Density
|
640000 dots/m²
|
427186 dots/m²
|
360000 dots/m²
|
298605 dots/m²
|
289050 dots/m²
|
|||||
|
LED Type
|
SMD1010
|
SMD1212
|
SMD1212
|
SMD1515
|
SMD1515
|
|||||
|
Brightness
|
＞700cd/m²
|
＞700cd/m²
|
＞700cd/m²
|
＞700cd/m²
|
＞700cd/m²
|
|||||
|
Module Size
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
|||||
|
Module Resolution
|
256*128
|
208*104
|
192*96
|
174*87
|
172*86
|
|||||
|
Cabinet Size
|
640*480 mm
|
640*480 mm
|
640*480 mm
|
640*480 mm
|
640*480 mm
|
|||||
|
Cabinet Resolution
|
512*384
|
416*312
|
384*288
|
348*261
|
344*258
|
|||||
|
Cabinet Material
|
Die-casting Aluminum
|
|
|
|
|
|||||
|
Cabinet Weight
|
7kg/cbn
|
|
|
|
|
|||||
|
Viewing Angle
|
H:160° / V:140°
|
|
|
|
|
|||||
|
Refresh Rate
|
≥3840Hz
|
|
|
|
|
|||||
|
Viewing Distance
|
1.2m~15m
|
1.5m~20m
|
1.6m~25m
|
1.8m~30m
|
1.8m~30m
|
|||||
|
Gray Scale
|
14~16bit
|
|
|
|
|
|||||
|
Max Power Consumption
|
700W/m²
|
700W/m²
|
800W/m²
|
800W/m²
|
800W/m²
|
|||||
|
Avg. Power Consumption
|
350W/m²
|
350W/m²
|
400W/m²
|
400W/m²
|
400W/m²
|
|||||
|
Power Input
|
AC 100～240V
|
|
|
|
|
|||||
|
Frequency
|
50～60Hz
|
|
|
|
|
|||||
|
Maintenance
|
100% Front Service
|
|
|
|
|
|||||
|
Operating Temperature
|
-20℃～50℃
|
|
|
|
|
|||||
|
Operating Humidity
|
10%～95%
|
|
|
|
|
|||||
|
Lifetime
|
100,000H
|
|
|
|
|
|||||

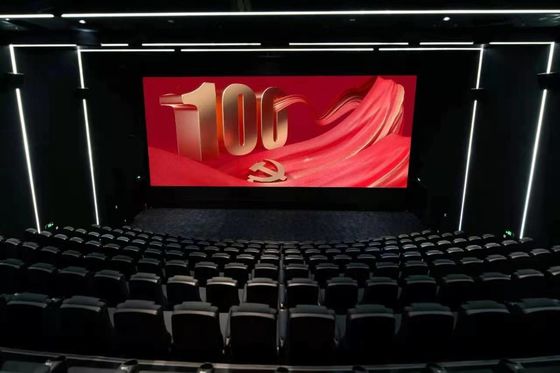

Applications:
Small Pixel LED display are widely used in different applications, the main application fields
are command and dispatch center, security monitoring, video conference, exhibition, radio and
television studio, meteorological information center, production safety monitoring, environment
monitoring, fire protection, maritime flood control, energy, electric power, finance, securities market,
shopping malls, hotels, airports, subway and so on
