Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5

Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5
Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5

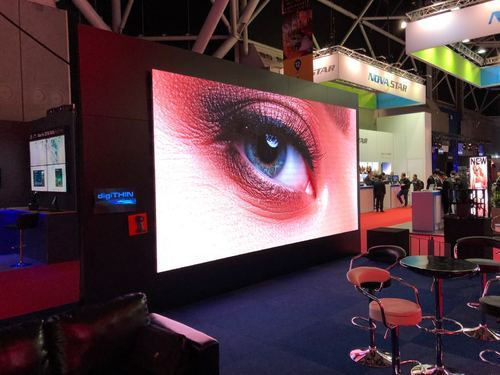

Large Image :  Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5

Product Details:
Place of Origin: Guangdong, China
Brand Name: Longvision
Certification: CE FCC UL ROHS
Model Number: VQ series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meters
Price: $400.00-$800.00/Square Meters
Packaging Details: wooden/carton case
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Square Meter/Square Meters per Month

Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5

Description
Panel Size: 480/960*480mm Pixel Pitch: P1.2 P1.5 P1.8 P2.5, P1.2 P1.5 P1.8 P2.5
Brightness: 600-1000nits Refresh Rate: 3840Hz
Viewing Angle: H 160°/ V 140° IP Rate: 41/20
Weight: 26kg/㎡ Gray Scale: 16 Bit
High Light:

P1.5 fine pitch display

,

P1.2 fine pitch display

,

P1.2 led screen pixel pitch




Advantages

1. 100% front maintenance, the led module ,power supply, receiving cards all can be
taken out from front side, easy and fast to do maintenance.

2. Module unit support hot-plug, Saving 70% installation cost

3. High refresh rate: 3840-7680Hz, Low light, high grey scale, 26bit.

4. 480*960 and 480*480 are combinable





Two size of VL series, and Sister Units Of 480*960 & 480*480 Are Combinable

1) Effectively ensure the flexibility of the size adjustment when engineering installation
2) Support vertical 1/2 unit splicing and unit cutting
3) Minimize the costs of engineering installation

Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 0
Product Size

1
W: 960mm * H:480mm
2
W: 480mm * H:480mm
Pixel Pitch

1
P2.5 mm/ P1.875 mm
2
P1.579 mm/P1.29 mm













100% Front Maintenance

1, 100% front maintenance is a very necessary engineering use for small pitch, which can effectively
ensure the installation thickness, the thinnest can be up to 60mm.
2, Better protection against dust damage to electronic components and PCB board.
3, More convenient disassembly and installation, saving time and effort.
Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 1









Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 2
Module Unit+Power Hot-plugCommunication + power hot-plug design are better to:
1. Reduce electromagnetic radiation and its interference with display.
2. Ensure the stability of communication and power supply, and reduce the failure rate.
3. Double hot-plug, simplify cabinet structure and increase the convenience of installation
and maintenance.

Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 3



Hot-plug Design
Support Hot-plug Maintenance




Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 4
Low voltage output design 4.2V low
voltage output design ensures low consumptiondisplay and reduce operating temperature rise







Product Parameters



Model
VL4912
VL4915
VL4918
VL4925
Pixel Pitch(mm)
1.29mm
1.579mm
1.875mm
2.5mm
Application
Indoor UHD
Indoor UHD
Indoor UHD
Indoor UHD
Pixel Density (dots/m²)
600586
401084
284444
160000
LED Type
SMD1010
SMD1010
SMD1515
SMD2121


SMD1212


Brightness (cd/m²)
200~800nit adjustable



Module Size (mm*mm)
240mm*240mm



Module Resolution (dots*dots)
186*186
152*152
128*128
96*96
Cabinet Size (W*H*D)
480*480*60mm/960*480*60mm



Cabinet Resolution (dots*dots)
372*372/744*372
304*304/608*304
256*256/512*256
192*192/384*192
Cabinet Material
Die-casting Aluminum



Cabinet Weight (±0.25kg)
26kg/m²



Viewing Angle (Deg)
H:160°/V:140°



Refresh Rate (Hz)
>1920Hz



Viewing Distance (m)
>1m
>1.5m
>2m
>2.5m
Gray Scale (bit)
14bit



Max./Avg. Power Consumption(m²)
600W/100W~300W



AC Power Input(V)
AC 200~240V



AC Power Frequency (Hz)
50~60Hz



Level of Protection
Front: IP41/Rear: IP20



Maintenance
100% Front Service





Cases Shows

Widely used in Cinema, TV Station, Shopping malls, retail shops, buildings...etc.

Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 5

Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 6
Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 7
Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 8
Advertising Fine Pitch Display Indoor Led Screen Pixel Pitch P1.2 P1.5 P1.8 P2.5 9






FAQ :



Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.
Low voltage output design 4.2V low
voltage output design ensures low consumptiondisplay and reduce operating temperature rise
