High Definition Commercial Modular Led Digital Display Panels P1.9 P2.5 P2.9 P3.9

Name: High Definition Commercial Modular Led Digital Display Panels P1.9 P2.5 P2.9 P3.9
Brand: Longvision
SKU: DL Series
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (106 reviews)

All Products

Outdoor Led Display Screen
(70)

Indoor Led Display Screen
(81)

Led Screens For Events
(54)

Outdoor Transparent Led Screen
(26)

Fine Pitch Led Display
(26)

Smart Led Poster Display
(32)

Taxi Top Led Display
(44)

Stadium Led Screen
(10)

Led Curtain Screen
(6)

Led Mesh Screen
(5)

Shelf Led Screen
(4)

Led Screen Floor Tiles
(11)

Curved Led Screen
(6)

LCD Touch Screen
(51)

Pole Led Display
(6)

Certification

I'm Online Chat Now

High Definition Commercial Modular Led Digital Display Panels P1.9 P2.5 P2.9 P3.9

Large Image : High Definition Commercial Modular Led Digital Display Panels P1.9 P2.5 P2.9 P3.9

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Longvision
Certification:	CE, ROHS, UL, FCC
Model Number:	DL Series

Payment & Shipping Terms:

Minimum Order Quantity:	2 Sets
Price:	negotiable
Packaging Details:	wooden/carton case
Delivery Time:	7-20 work days
Payment Terms:	T/T
Supply Ability:	3000 Square Meter per Month

Contact Now

High Definition Commercial Modular Led Digital Display Panels P1.9 P2.5 P2.9 P3.9

Description

Application:	Indoor Commercial Advertising	Color:	Black
Panel Size:	1000*250mm	Pixel Pitch:	P1.9 P2.5 P2 .9 P3.9
Installation:	Floor Standing Wall Mounting Hanging	Brightness:	700-1200nits
Warranty:	2 Years	Module Size:	250x250mm
Refresh Rate:	1920Hz-3840Hz	Cabinet Material:	Die-casting Aluminum
Viewing Angle:	140/140 Degree	LED Type:	SMD 2121
Input Voltage:	AC 100-240V 50/60Hz	Lifespan:	100 000 Hours
High Light:	P3.9 led digital display , P1.9 led digital display , P3.9 modular led display panels

Feature:

★ Front maintenance & Front Installation
★ High Refresh and High Grey Scale
★ Cabinet Dimension Ratio 16:9
★ Dual Backup Power & Data
★ Ultra Light and Ultra Thin
★ Cable Free Connection

Specification

Model	FIW125	FIW186	FI2W
LEDType	SMD1515	SMD1515	SMD1515
Physical Density (dot/m²)	640000	289050	160000
Module Size (W ×H ×D) mm	320x160x17	320x160x17	320x160x17
Module Resolution(W×H)	256x128	172x86	128x64
Cabinet Size (W ×H ×D) mm	640x480x74	640x480x74	640x480x74
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Scanning Mode	1/64	1/48	1/32
Cabinet Flatness(mm)	≤0.10	≤0.10	≤0.10
Grey Scale (Bit)	14	14	14
Protection Level	IP45	IP45	IP45
Brightness(cd/㎡)	500-900cd/㎡	500-900cd/㎡	500-900cd/㎡
ColorTemperature	3200-9300Kadjustable	3200-9300Kadjustable	3200-9300Kadjustable
Brightness Uniformity	≥98%	≥98%	≥98%
Horizontal/Vertical ViewAngle	≥140°/≥120°	≥140°/≥120°	≥140°/≥120°
Contrast Ratio	≥5000:1	≥5000:1	≥5000:1
Module Input Voltage DC	5V	5V	5V
Max Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz
Input VoltageAC	110-220V	110-220V	110-220V
Cabinet Max Power Consumption	≤600W/m2	≤580W/m2	≤480W/m2
Cabinet Aver.PowerConsumption	≤200W/m2	≤180W/m2	≤160W/m2
Working Temperature	20℃～+80℃	20℃～+80℃	20℃～+80℃
Working Humidity	10%～95%RH	10%～95%RH	10%～95%RH
Installation/Service Method	Front installation/Front service	Front installation/Front service	Front installation/Front service

Product Discription

High Definition Commercial Modular Led Digital Display Panels P1.9 P2.5 P2.9 P3.9 0

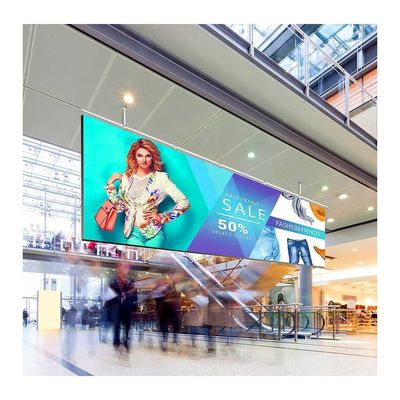

Application

High Definition Commercial Modular Led Digital Display Panels P1.9 P2.5 P2.9 P3.9 11

FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
