Product Details:
|
| Color: | Black, White Color | Panel Size: | 800*800*91.55mm |
|---|---|---|---|
| Pixel Pitch: | P3 P4 P5 P6 P8 P10 P16 | Function: | SDK |
| Application: | Outdoor Fixed | Brightness: | 6500nits |
| Module Size: | 400x200mm | Refresh Rate: | 3840Hz |
| Cabinet Material: | Aluminum | Viewing Angle: | 140H/110V |
| Installation: | Front Or Rear | IP Rate: | IP65 |
| High Light: | P8 led panel wall screen,P6 led panel wall screen,P6 led pixel screen |
||
|

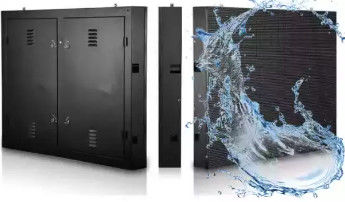

LED Cabinet
|
|
|
Pixel Density
|
10000 Dots/㎡
|
|
Cabinet Dimension(W*H*D)
|
960×960 mm
|
|
Cabinet Resolution
|
96×96=9216 Dots
|
|
Module Quantity/cabinet
|
3×6=18 pcs
|
|
Cabinet Material
|
steel
|
|
Whole Screen
|
|
|
Max Power Consumption
|
800 w/sqm
|
|
Average Power Consumption
|
300 w/sqm
|
|
Brightness
|
6500 cd/sqm
|
|
Viewing Angle
|
H≥120° V≥120°
|
|
Color
|
16 bit
|
|
Display Funtion
|
Text, Graphic, Video
|
|
Refresh Rate
|
≥1800Hz
|
|
Input Voltage
|
AC110-220V±10%,50/60Hz
|
|
Output Voltage
|
DC-5V,40A/60A/80A
|
|
Grey Scale
|
1024 levels/color
|
|
Life Span
|
100,000 hours
|
|
Waterproof Levels
|
Front: IP65, Back: IP43
|
|
Working Temperature
|
-20℃~ +65 ℃
|
|
Humidity
|
10% ~ 95%
|
|
Certificate
|
CE ROHS FCC ISO9001 TUV
|
2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
3. Low consumption, stable performance, highly durable
4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually
5. 2 years warranty, easy to install & maintenance
6. CE, ROHS, FCC
|
Applications
|
