Product Details:
|
| Application: | DJ Booth, Live Events Led Display, Club, Adervertising /rental / Show | Panel Size: | 500*500mm 500*1000mm |
|---|---|---|---|
| Pixel Pitch: | P3.9 P4.8 P5.95, P3.9 P4.8 P5.95 | Material: | Die-casting Aluminum |
| Module Size: | 250*250mm | Brightness: | 5000nits |
| Refresh Rate: | 1920~3840Hz | Grey Scale: | 16 Bits |
| Weight: | 7.5kg | IP Rate: | 43 |
| Port: | Shenzhen Port | ||
| High Light: | P3.9 outdoor waterproof led screen,5000nits outdoor waterproof led screen,P3.9 retail led display |
||
P3.9 P4.8 Outdoor Waterproof Led Screen Retail Led Display 5000nits
|
Product Advantages
|
|

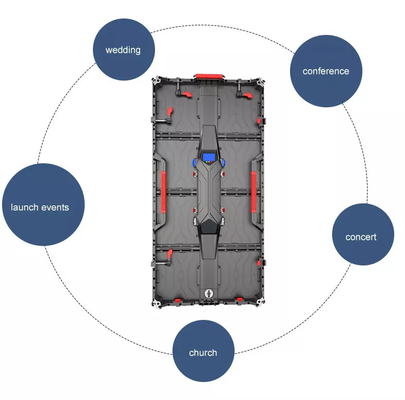

1. Multi-purpose cabinet design:use for both indoor/outdoor screen
2. 100% front and rear maintenance:all components dismount from front and rear side, fast and easy
3. Multiple splicing:exclusive angle lock, 45° bevel edge and 90° right angle customized cabinet
4. UVAE & Hard-Coating Tech:maximum 160° viewing angle, anti-collision and scratch-proof
|
|
Model
|
TC 2.84
|
TC 3.91
|
TC 3.91
|
TC 4.81
|
TC 5.95
|
||||
|
Pixel Pitch (mm)
|
2.84
|
3.91
|
3.91
|
4.8
|
5.95
|
||||
|
Application
|
Indoor Rental
|
|
Outdoor Rental
|
|
|
||||
|
Pixel Density (dot/m²)
|
147456
|
112896
|
112896
|
65536
|
43264
|
||||
|
LED Configuration
|
SMD2020
|
SMD2020
|
SMD1921
|
SMD2727
|
SMD2727
|
||||
|
Brightness (CD/m²)
|
≥1000nit
|
≥1000nit
|
≥5000nit
|
≥5000nit
|
≥5500nit
|
||||
|
Module Size (mm*mm)
|
250*250mm
|
|
|
|
|
||||
|
Module Resolution (dot*dot)
|
96*96
|
64*64
|
64*64
|
52*52
|
42*42
|
||||
|
Cabinet Size (W*H*D)/(mm)
|
500*500*80
|
|
|
|
|
||||
|
Cabinet Resolution (dot*dot)
|
192*192
|
128*128
|
128*128
|
104*104
|
84*84
|
||||
|
Material
|
Die-casting Aluminum
|
|
|
|
|
||||
|
Angle Lock Degree
|
±5°,±10°
|
|
|
|
|
||||
|
Cabinet Weight (±0.25kg)
|
7.0kg/cbn
|
7.0kg/cbn
|
7.5kg/cbn
|
7.5kg/cbn
|
7.5kg/cbn
|
||||
|
Viewing Angle
|
Horizontal:140° Vertical:140°
|
|
|
|
|
||||
|
Refresh Rate (Hz)
|
≥1920hz / ≥3840hz
|
|
|
|
|
||||
|
Viewing Distance (m)
|
>2.84m
|
>3.91
|
|
>4.81
|
>5.95
|
||||
|
Gray Scale (bit)
|
14bit
|
|
|
|
|
||||
|
Max/Avg. Consumption (W/m²)
|
480W/180W
|
500W/200W
|
560W/220W
|
600W/250W
|
650W/280W
|
||||
|
AC Input (V)
|
100～240V
|
100～240V
|
100～240V
|
100～240V
|
100～240V
|
||||
|
AC Frequency (Hz)
|
50～60Hz
|
50～60Hz
|
50～60Hz
|
50～60Hz
|
50～60Hz
|
||||
|
Waterproof Level
|
IP43
|
IP43
|
IP65
|
IP65
|
IP65
|
||||
|
Maintenance
|
100% Front & Rear Service
|
|
|
|
|
||||
|
Control system
|
Nova/Linsn/Colorlight..
|
|
|
|
|
||||

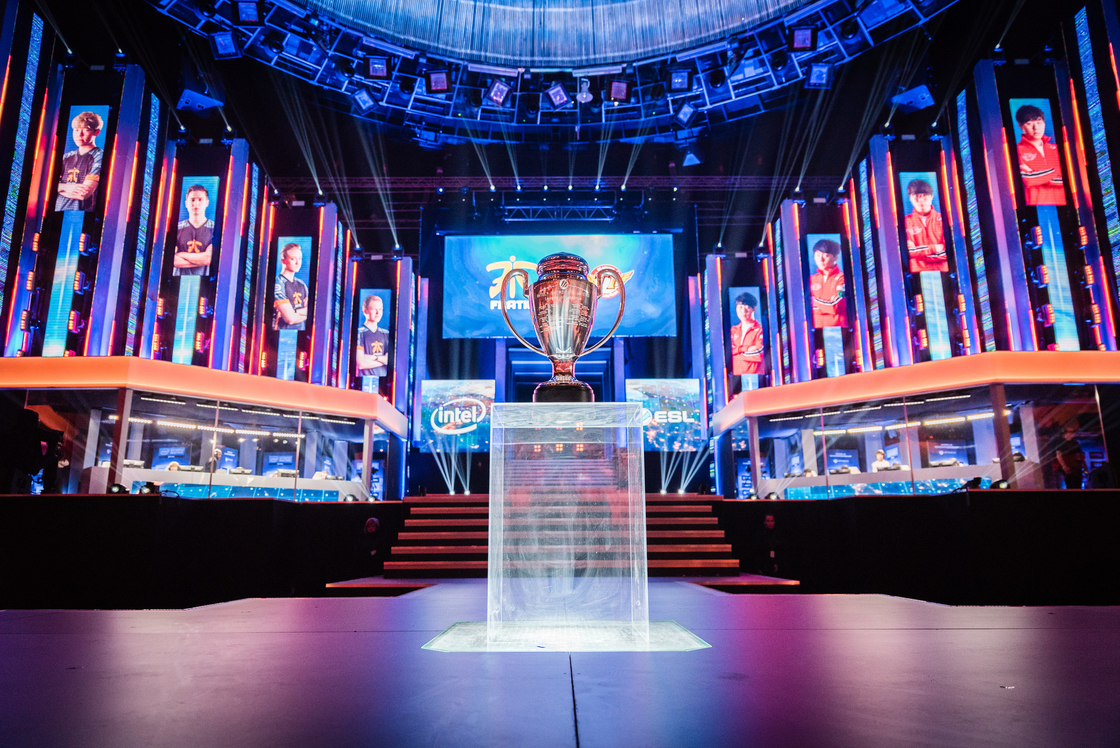

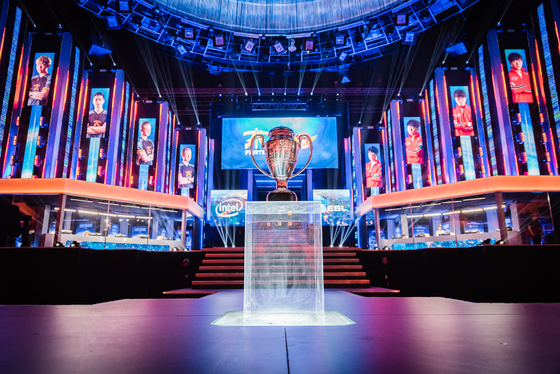

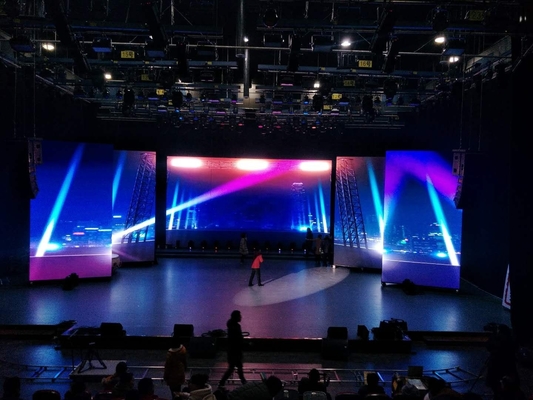

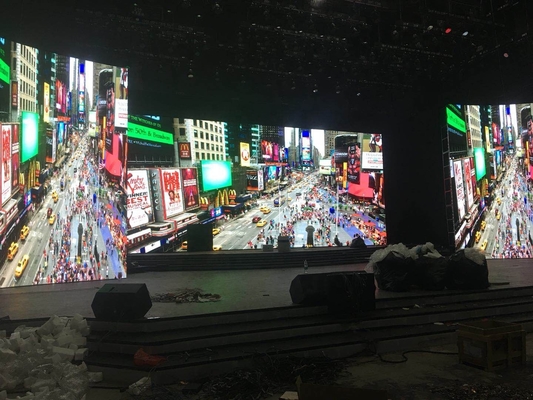

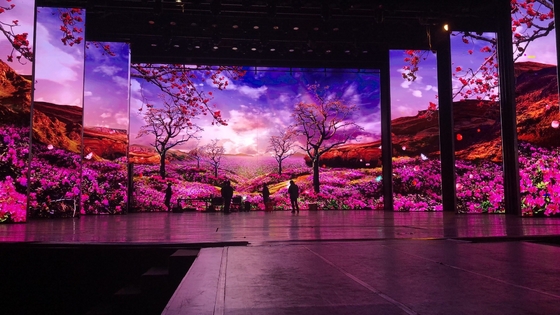

Applications:
The stage performance market is enduring, and it is the main application field of LED
rental screen. Led display products are widely used in stage performance activities all
over the world. Led display screen has brilliant and bright color performance, which
brings rich colors to the stage performance. The colorful display screen combined with
flexible switching screen lens creates a strong visual impact and artistic appeal for the
audience. With the increasing number of small performances and large concerts,LED
rental screens have been widely used in stages, large events and other places. As the
rental screen box is light, thin, not easy to deformation, fast installation and other
characteristics,LED display is an indispensable part of the stage performance field.
