Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16

Certification
China Shenzhen Longvision Technology Co., Ltd. certification
China Shenzhen Longvision Technology Co., Ltd. certification
I'm Online Chat Now

Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16

Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16

Large Image :  Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16

Product Details:
Place of Origin: Guangdong, China
Brand Name: Longvision
Certification: CE FCC ROHS UL CCC
Model Number: LT series
Payment & Shipping Terms:
Minimum Order Quantity: 2 Units
Price: $699.00 - $1899/Units
Packaging Details: wooden/carton case/Flight case
Delivery Time: 4-8 Days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Square Meter/Square Meters per Month

Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16

Description
Color: White Panel Size: 192*960mm 256*960mm 320*960mm
Pixel Pitch: P4 P5 P6 P8 P10 P16 Material: Optical Grade Hardened PC
Input Voltage: AC110V - AC240V Brightness: 800~1000nits
Refresh Rate: 3840Hz Transparency: 60%-85%
Weight: 3.5kg/m2 Viewing Angle: 160/160
Life Span: 100000 Hrs Warranty: 2 -5 Years
High Light:

P8 Outdoor Transparent Led Screen

,

P16 Outdoor Transparent Led Screen

,

P16 adhesive transparent led display



Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16

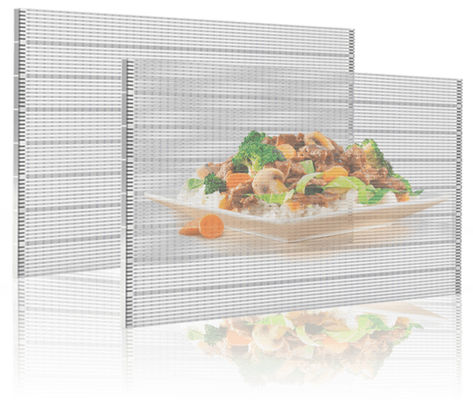

Advantages
1. High transparency, high permeability of LED transparent screen

Does not change the original design structure, does not affect the daily lighting. When the screen turn off, it is almost invisible and completely melts into the glass.

2. Super light and thin
The thickness is only 3mm, the weight is light to 5kg/㎡

3. Bendable
LED film screen is flexible, can be attached to the glass building with radian

4. Support arbitrary cutting
Unlimited by size and shape, to meet different size requirements, to achieve more creative display

5. Wide viewing Angle
Each Angle 160°, watching no dead Angle, no color bias, every side is wonderful

6.Safe and Beautiful
Whole screen without any components, hidden power supply, safe and reliable

7. Quick installation
Simple and quick, can be directly pasted on the glass surface

Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 0
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 1
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 2
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 3
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 4
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 5
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 6
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 7
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 8
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 9


Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 10
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 11
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 12
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 13
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 14
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 15
Window Glass Adhesive Outdoor Transparent Led Screen Display P8 P10 P16 16


Specifications:
Mode LT 2.84 LT 3.91 LT 7.81
LEDs 1R1G1B 1R1G1B 1R1G1B
LED type SMD1415 SMD1921 SMD1921
Pixel pitch W2.84mm*H6.25mm W3.91mm*H7.81mm W7.81mm*H7.81mm
Unit size W1000mm*H500mm*D50mm
Unit resolution 352*80dots 256*64 dots 128*64 dots
Resolution 56320dots/ 32768dots/ 16384dots/
Transparency rate 60% 70% 60%
Brightness 3000CD/ 800/1500/4000/5000CD/ 4000CD/
Cabinet Weight 5KG 5KG 6KG
Max consumption 800W/
Adv consumption 240W/
Refresh rate ≥3851Hz ≥3840Hz ≥1920Hz
Working temperature 10~51 10~40 10~40
Life time   ≥100,000 hours
Input voltage AC170~240V

Mode TS10.42 TS15.625 TS20
LEDs 1R1G1B 1R1G1B 1R1G1B
LED type SMD1921 SMD3535 SMD3535
Pixel pitch W10.42mm*H10.42mm W15.625mm*H15.625mm W10mm*H20mm
Unit size W1000mm*H500mm*D50mm
Unit resolution 96*48dots 64*32dots 48*24dots
Resolution 9216dots/ 4096dots/ 2304dots/
Transparency rate 65% 75% 85%
Brightness 4000CD/ 4000CD/ 4000CD/
Cabinet Weight 6KG 6KG 6KG
Max consumption 700W/ 600W/ 500W/
Adv consumption 200W/ 180W/ 150W/
Refresh rate ≥3851Hz ≥3840Hz ≥1920Hz
Working temperature 10~51 10~40 10~40
Life time   ≥100,000 hours
Input voltage AC170~240V



FAQ :

Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
