Home ProductsPole Led Display

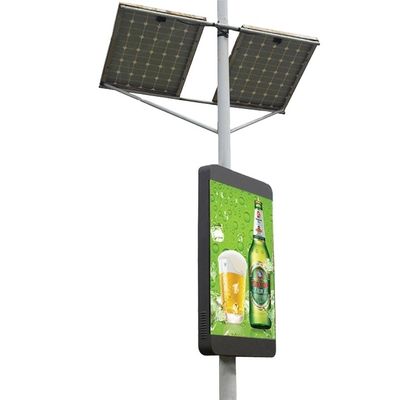

ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5

Certification
China Shenzhen Longvision Technology Co., Ltd. certification
China Shenzhen Longvision Technology Co., Ltd. certification
I'm Online Chat Now

ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5

ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5
ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5 ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5 ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5 ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5

Large Image :  ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5

Product Details:
Place of Origin: Guangdong, China
Brand Name: Longvision
Certification: CE, ROHS, UL, FCC
Model Number: LW series
Payment & Shipping Terms:
Minimum Order Quantity: 2 Square Meters
Price: negotiable
Packaging Details: wooden/carton case
Delivery Time: 7-20 work days
Payment Terms: T/T
Supply Ability: 3000 Square Meter/Month

ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5

Description
Application: Outdoor, Outdoor Fixed/Lamp Post Color: White And Black, White And Black
Panel Size: 960mm*960mm Pixel Pitch: P3 P4 P5 P6 P8 P10
Brightness: 4000-5000nits Module Size: 240x320mm
Refresh Rate: 3840Hz Viewing Angle: 160H/160V
Network Support: Wifi/3G/4G/5G/Ethernet Optional Operating System: Android/PC(Windows 7/8/10)
High Light:

ODM Pole Led Display

,

3G Pole Led Display

,

ODM street led screen

ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5

Product Advantages:
1. Utra Thin and Light weight, can be installed in any size and strength of the lamp pole
2. In direct sunlight, the outdoor LED display can be high-definition and high-brightness
3. Can withstand high and low temperature, can be used in extremely harsh environment
4. Modular design, reliable quality and easy maintenance
5. Outdoor IP65 is waterproof, dustproof and corrosion proof

Product Description
ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5 0
ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5 1
ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5 2
ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5 3
ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5 4
Application
ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5 5
ODM WIFI 3G 4G Wireless Advertising Pole Led Display Street Led Screen P3 P4 P5 6



Specification
Item
Parameter
Standard Caninet Size
960mm*960mm*160mm
Cabinet Weight
35KGS
Brightness/Adjustment
≥5500cd/m², Level 16- Automatic / Level 100-Manual operation
View Angle
≥120°(Vertical),≥120°(Horizontal)
Best View Distance
5-15m
Grey Scale
Within 65536 Step
Frame Frequency
≥60Hz
Refresh Rate
≥720Hz
Signal Input Source
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI
Scan Mode
1/8Scan
Drive IC
5020
Module Qty / M2
39
Display Color Qty
16777216
Continuous Working Time
>24(Hrs)
Screen Lifespan
>100,000(Hrs)
MTBF
>5000(Hrs)
Max. power consumption
850W/㎡
Ave. power consumption
280W/㎡
Out of control pixel rate
≥3/10,000(discrete distribution)
Control Distance
100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)
Flatness
Screen Surface≤0.5mm,Pixel Pitch≤0.3mm
Operation Temperature
-10℃~+50℃
Working Humidity
10%~98%RH
Storage Temperature
-40℃~+85℃
Software Connection
Standard Computer Connection,Compatiable With Windows,Unix,Novell
protection system
Overtemperature/overload/power/image compensation/nonlinear correction
Working Valtage
200~240 V
Dielectric Strength
50HZ/1500V(AC RMS)/1min
Temperature Rise
Metal≤40K,Insulation≤65K , After Heat Balance
IP Grade
IP65
Computer display mode
1024*768
Media Player
LED Pressional Media Player




FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
