Product Details:
|
| Application: | Indoor TV ,meeting Room, Shopping Mall, Church, Showing Room | Panel Size: | 600mm*337.5mm |
|---|---|---|---|
| LED Type: | SMD1515 (3in1)/ 1212 | Voltage: | AC100~240v 5O/60HZ |
| Refresh Rate: | 3840-7680hz | Gray Scale: | 16bit |
| Life Time: | 100000 Hours | Package: | Wooden Case And Flight Case |
| High Light: | UHD led video wall display,1.8mm led video wall display,UHD led wall displays |
||

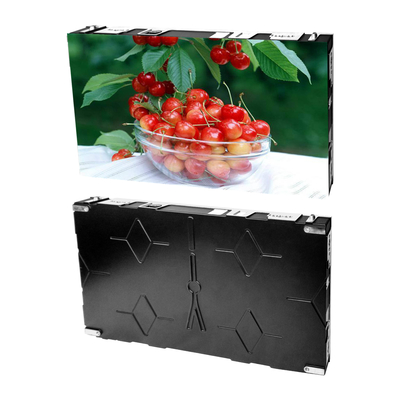

OEM Small Pixel Pitch Led Video Wall Display P0.9/1.25/1.5/1.8mm Ultra Thin
|
Advantages
|
|
1, Excellent Heat dissipation
Super heat dissipation, natural cooling no need fans ,keep longlife for led display
2, Ultra high contrast
The most "black" display COB the 10,000:1 ultra-high contrast ratio gives you a beautiful high-definition image.
3, 16:9 Design and Easy maintenance
16:9 cabinet size design, point-to-point matching 2K/4K/8K standard resolution; Front maintenance design, wall-mountable installation, easy installation and maintenance;
4, Automatic brightness adjustment technology
ensuring viewers in any environment to watch comfortably; support power and signal redundancy backup to meet the needs of high security applications.
 High definition fine pixel indoor fixed Led display, 16:9 size.
P0.9mm/1.2mm/1.5mm/1.8mm to make 2K 4K 8K LED display
|
|
Specifications
|
|
|
|
|
|
|||||
|
Model
|
VA 1.2
|
VA 1.5
|
VA 1.6
|
VA 1.8
|
VA 1.8
|
|||||
|
Pixel Pitch
|
1.25
|
1.53
|
1.667
|
1.83
|
1.86
|
|||||
|
Application
|
UHD Display
|
|
|
|
|
|||||
|
Pixel Density
|
640000 dots/m²
|
427186 dots/m²
|
360000 dots/m²
|
298605 dots/m²
|
289050 dots/m²
|
|||||
|
LED Type
|
SMD1010
|
SMD1212
|
SMD1212
|
SMD1515
|
SMD1515
|
|||||
|
Brightness
|
＞700cd/m²
|
＞700cd/m²
|
＞700cd/m²
|
＞700cd/m²
|
＞700cd/m²
|
|||||
|
Module Size
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
|||||
|
Module Resolution
|
256*128
|
208*104
|
192*96
|
174*87
|
172*86
|
|||||
|
Cabinet Size
|
600*337.5 mm |
600*337.5
mm
|
600*337.5 mm
|
600*337.5
mm
|
600*337.5
mm
|
|||||
|
Cabinet Resolution
|
512*384
|
416*312
|
384*288
|
348*261
|
344*258
|
|||||
|
Cabinet Material
|
Die-casting Aluminum
|
|
|
|
|
|||||
|
Cabinet Weight
|
7kg/cbn
|
|
|
|
|
|||||
|
Viewing Angle
|
H:160° / V:140°
|
|
|
|
|
|||||
|
Refresh Rate
|
≥3840Hz
|
|
|
|
|
|||||
|
Viewing Distance
|
1.2m~15m
|
1.5m~20m
|
1.6m~25m
|
1.8m~30m
|
1.8m~30m
|
|||||
|
Gray Scale
|
14~16bit
|
|
|
|
|
|||||
|
Max Power Consumption
|
700W/m²
|
700W/m²
|
800W/m²
|
800W/m²
|
800W/m²
|
|||||
|
Avg. Power Consumption
|
350W/m²
|
350W/m²
|
400W/m²
|
400W/m²
|
400W/m²
|
|||||
|
Power Input
|
AC 100～240V
|
|
|
|
|
|||||
|
Frequency
|
50～60Hz
|
|
|
|
|
|||||
|
Maintenance
|
100% Front Service
|
|
|
|
|
|||||
|
Operating Temperature
|
-20℃～50℃
|
|
|
|
|
|||||
|
Operating Humidity
|
10%～95%
|
|
|
|
|
|||||
|
Lifetime
|
100,000H
|
|
|
|
|
|||||

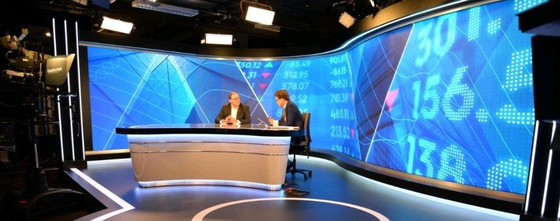

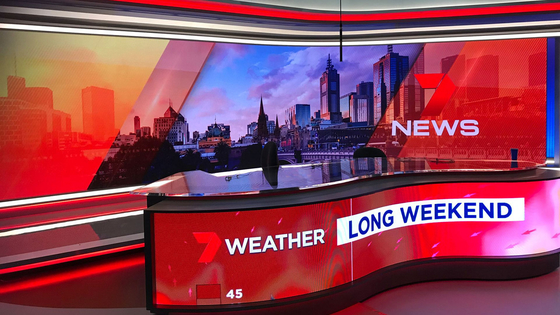

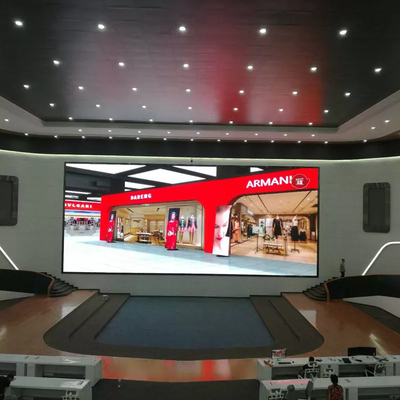

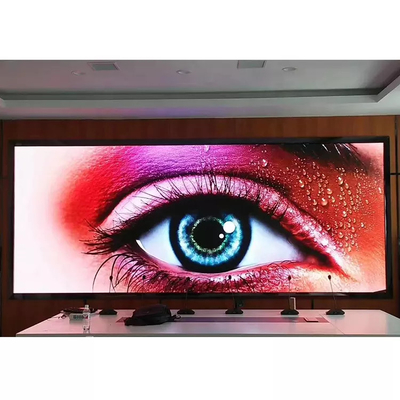

Applications:
Small Pixel LED display are widely used in different applications, the main application fields
are command and dispatch center, security monitoring, video conference, exhibition, radio and
television studio, meteorological information center, production safety monitoring, environment
monitoring, fire protection, maritime flood control, energy, electric power, finance, securities market,
shopping malls, hotels, airports, subway and so on
