Product Details:
|
| Tube Chip Color: | Full Color, 1RGB | Net. Weight/set: | 43Kg |
|---|---|---|---|
| Application: | Vidio Advertising Multimedia | Life Span: | LED>100000Hours |
| IP Rate: | IP40 | Warranty: | 2-5 Years |
| Export: | Shenzhen Port | ||
| High Light: | P1.9 Smart Led Poster Display,4G Smart Led Poster Display,P1.9 poster led display |
||

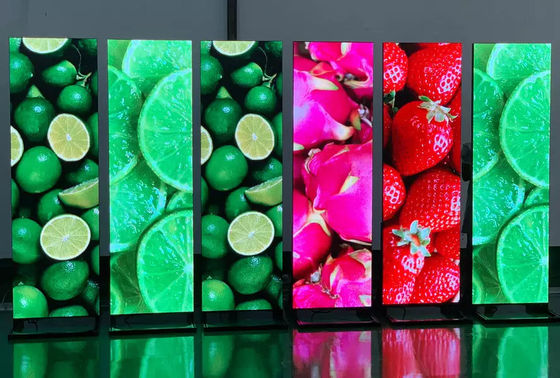

Multiple Installations
High-density digital LED media player Suitable for hanging, wall-mounted, base-standing, bracket standing, and creative splicing installation, as well as horizontal placement installation.
Break the traditional installation method and make the display smarter.

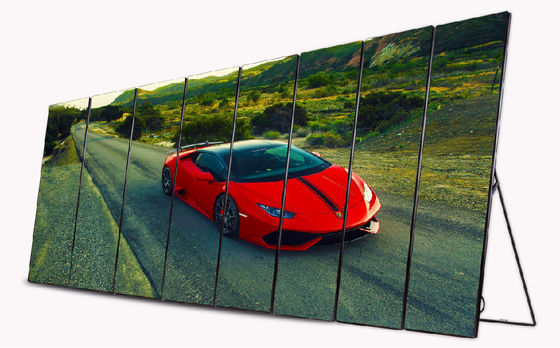

Multi-Screen Splicing
The Digital LED poster not only supports individual usage but also cascade program.
Multiple screens can be spliced together into a large LED display screen.
|
Model
|
P2.5
|
P2.5
|
P3
|
P3
|
|||
|
Pixel Pitch
|
2.5mm
|
2.5mm
|
3mm
|
3mm
|
|||
|
Application
|
Indoor
|
|
|
|
|||
|
LED Configuration
|
SMD2121
|
SMD2121
|
SMD2121
|
SMD2121
|
|||
|
Pixel Density
|
160,000dots/㎡
|
160,000dots/㎡
|
111,111dots/㎡
|
111,111dots/㎡
|
|||
|
Module size
|
160X160mm
|
160X160mm
|
192X192mm
|
192X192mm
|
|||
|
Module Resolution
|
64X64dot
|
64X64dot
|
64X64dot
|
64X64dot
|
|||
|
Cabinet Size
|
640X1920X38mm
|
960X1920X38mm
|
576X1920X38mm
|
768X1920X38mm
|
|||
|
Cabinet Resolution
|
256X768dots
|
384X768dots
|
192X640dots
|
256X640dots
|
|||
|
Cabinet Weight
|
35kg
|
50kg
|
30kg
|
40kg
|
|||
|
IP Rating ( front/back)
|
IP40
|
IP40
|
IP40
|
IP40
|
|||
|
Brightness Intensity
|
≥1000cd/㎡
|
≥1000cd/㎡
|
≥1000cd/㎡
|
≥1000cd/㎡
|
|||
|
Viewing Angle
|
140°
|
140°
|
140°
|
140°
|
|||
|
View Distance
|
＞2m
|
＞2m
|
＞3m
|
＞3m
|
|||
|
Max./Avg. Power Consumption(W/m²)
|
900W/300W
|
1500W/500W
|
800W/260W
|
1100W/360W
|
|||
|
Refresh Frequency
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
|||
|
Control Mode
|
Synchronous display with control PC by DVI
|
|
|
|
|||
|
Operation Power
|
AC100/240 50/60HZ
|
|
|
|
|||
|
Operating Condition
|
- 20℃~+50℃, 10~90% RH
|
|
|
|
|||
Applications:
Commercial LED display screen 2.5mm applicationThis indoor movable adverts led poster
widely use for shops, hotel, wedding, meeting guidence, new product presentation, autocar 4S shop,
high-end cloth chain shops, metro station, airport, etc. This led poster is also called mirror led display.
