SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor

Certification
China Shenzhen Longvision Technology Co., Ltd. certification
China Shenzhen Longvision Technology Co., Ltd. certification
I'm Online Chat Now

SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor

SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor
SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor

Large Image :  SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor

Product Details:
Place of Origin: CHINA
Brand Name: LONGVISION
Certification: CE, ROHS, UL, FCC
Model Number: VHP
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: USD 465-969/square meter
Packaging Details: wooden case package
Delivery Time: 7-15 work days
Payment Terms: T/T, D/P, Western Union, MoneyGram
Supply Ability: 3000 square meter per month

SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor

Description
Application: TV Studio, Basketball, Live Events Led Display, Monitor Room, Advertising Video Wall Screen For Mall Material: Die-casting
Mdule Size: 320*160mm Grey Scale: 16bit
Viewing Angle: 160/160 Refresh Rate: 3840-7680
Warranty: 2-5 Years Life Span: 100000 Hours
High Light:

SMD1515 led wall display screen

,

2mm led wall display screen

,

SMD1515 led wall outdoor display

SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor



Advantage:



Pixel pitch: 1.25mm, 1.5mm, 1.6mm, 1.8mm, 1.9mm, 2mm led screen hd video and image display



1) Super small pixel pitch, show ultra hd image and video for advertising and rental market;


2) High precision and best quality LED and Drivers, high refresh rate, high grey level;


3) Small panel, one panel one receiving card, easy to operate and move;


4) Die Cast Aluminum Cabinet, durable and won't deform;


5) Support Different Input and output signals.

SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor 0

SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor 1
Ultra-light, Ultra-thin
1. Magnesium alloy die casting, single cabinet weight is only 6KG
2. Cabinet size: 640*480*48mm






SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor 2

The interior of the Led cabinet is simple and integrated, easy and fast to do maintenance











SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor 3





 Modular and front maintenance design
 Led module,HUB card,power supplier and cables can be assembled quickly and make the maintenance

 All components are completely front maintenance,led modules are pasted by magnets. Just use a vacuum

tool to remove led modules, then you can maintain receiving card and power supply









SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor 4



High refresh rate (7680hz) High grey scale(16bit) which can be the best video visual

performance and no scan line under the camara





SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor 5











Specification



Parameters VHP1.25 VHP1.5 VHP1.6 VHP1.8 VHP 2.0 VHP 2.5 VHP 3.0 VHP4.0
Pixel Pitch(mm) 1.25 1.538 1.667 1.839 2 2.5 3.076 4
LEDconfiguration SMD1010 SMD1212 SMD1515 SMD2020
Module size(mm) 320*160*14
Module resolution 256*128 208*104 192*96 172*86 160*80 128*64 104*52 80*40
Cabinet size(mm) 640*480*50
Cabinet resolution 512*384 416*312 384*288 344*258 320*240 256*192 208*156 160*120
Cabinet weight(kg) 6
Brightness(cd/m2) 500-1000
Max Power Consumption 580(W/m2) 450(W/m2) 460(W/m2) 420(W/m2) 480(W/m2)
Avg Power Consumption 193(W/m2) 150(W/m2) 193(W/m2) 140W/m2) 160(W/m2)
Refresh rate 3840Hz 1920Hz
IPRatingfFront/Rear) IP31/IP30

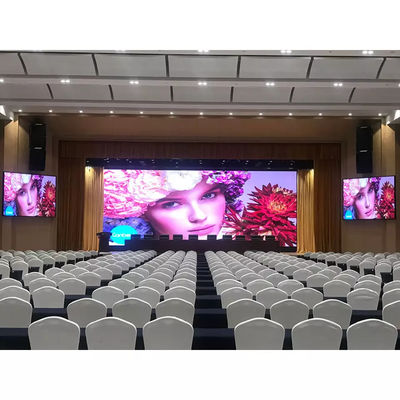

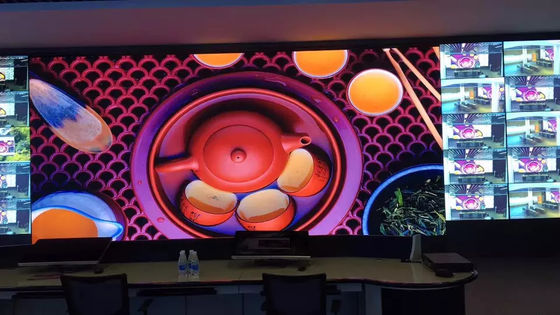

Applications:



Small Pixel LED display are widely used in different applications, the main application fields

are command and dispatch center, security monitoring, video conference, exhibition, radio and

television studio, meteorological information center, production safety monitoring, environment

monitoring, fire protection, maritime flood control, energy, electric power, finance, securities market,

shopping malls, hotels, airports, subway and so on



SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor 6SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor 7

SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor 8

SMD1515 2mm Mini Fine Pitch Led Wall Display Screen 4K For Outdoor 9







FAQ :



Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
