Product Details:
|
| Color: | Black, White Color | Panel Size: | 640*960mm |
|---|---|---|---|
| Pixel Pitch: | P4/P5/P6/P8/P10/P16 | Brightness: | 6500nits |
| Module Size: | 320x320mm | Refresh Rate: | 3840Hz |
| Cabinet Material: | Aluminum | Viewing Angle: | 140H/110V |
| Installation: | Front Or Rear | IP Rate: | IP65 |
| High Light: | 10mm Outdoor Led Advertising Display,SMD3535 Outdoor Led Advertising Display,320x160mm Outdoor Led Display Screen |
||
2. Fast lock for quick installation, only takes 10 seconds

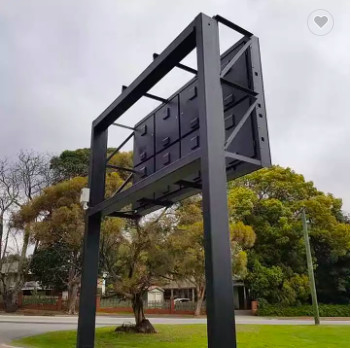

3. Full frontal maintenance, direct wall mounting
4. High-precision led screen cabinet, extending service life
Specification
| Model number | PH6 |
| Pixch pitch | 6mm |
| Pixel Density(dots/m2) | 27777 |
| Pixel Configuration | SMD3528 3 IN1 |
| Module size (mm) | 192*192 |
| Module resolution (dots) | 32*32 |
| Cabinet size (mm) | 576*576 |
| Scanning method | 1/8 |
| Brightness (cd/m2) | 4000 |
| Min. viewing distance | ≥3 |
| Viewing angle ( 50% brightness ) | ≤150° |
| Screen fresh rate | LED screen refresh frame freauency recommended is no less than 1200HZ(recommended) |
| Average Power Consumption(w/m2) | 800 |
| IP grade ( Waterproof Grade ) | IP67 |
| Screen thickness | 8cm |
| Control system | LINSN , Nova ,HD , XIXUN..... |
| Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
| Gray Scale | Recommended 14bit |
| Printed Circuit Board(PCB) | 4 Layer |
| Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
| Color | 64g color(on the condition of 4096 gray scale) |
| Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
| Cabinet | Die casting aluminum cabinet |
| Cabinet weight | 8KG/PCS |
| Warranty | 3 years |
Product Discription

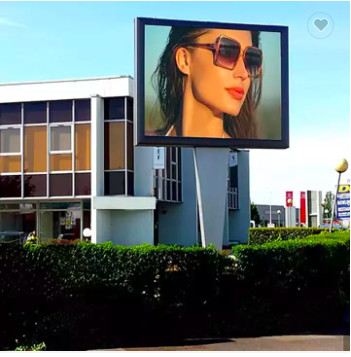

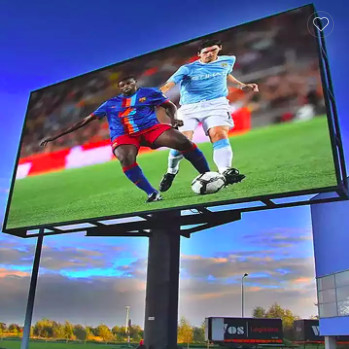

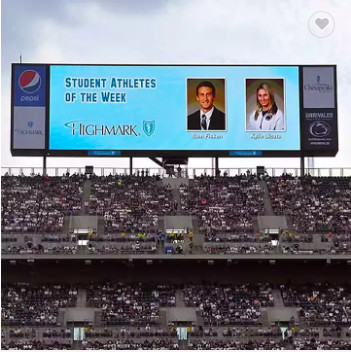

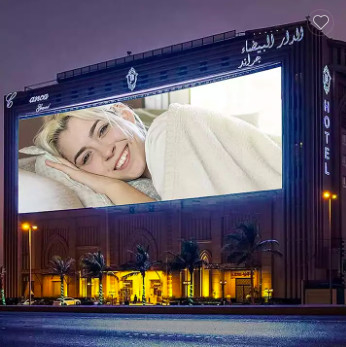

Application
Q1. What about LED Display MOQ?
