GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480

GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480
GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480

Large Image :  GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480

Product Details:
Place of Origin: Guangdong, China
Brand Name: Longvision
Certification: CE FCC ROHS UL CCC
Model Number: VL series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: $500.00-$1379/Square Meter
Packaging Details: wooden/carton case
Delivery Time: 4-8 Days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Square Meter/Square Meters per Month

GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480

Description
Application: TV Studio, Basketball, Live Events Led Display, Monitor Room, Advertising Video Wall Screen For Mall Pixel Pitch: P1.2 P1.5 P1.8 P2.5, P1.2 P1.5 P1.8 P2.5
Color: GGB Full Color Material: Die-Casting Aluminum
Brightness: 800nits Refresh Rate: 3840Hz
Viewing Angle: H 160°/ V 140° Weight: 26kg/㎡
High Light:

GGB video display walls

,

480x480 video display walls

,

GGB indoor led video wall

GGB Full Color Video Display Walls Indoor Led Video Wall 800nits


Product Features

1. 100% front maintenance        2. Module unit support hot-plug

3. Saving 70% installation cost  4. High refresh rate: 3840HZ

5. Low light high grey scale       6. 4.2V energy-saving design

7. 480*960 and 480*480 are combinable
Two size of VL series, and Sister Units Of 480*960 & 480*480 Are Combinable
GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 0

GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 1
1) Effectively ensure the flexibility of the size adjustment when engineering installation
2) Support vertical 1/2 unit splicing and unit cutting
3) Minimize the costs of engineering installation




W: 960mm * H:480mm&W: 480mm * H:480mm
GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 2



100% Front Maintenance
1) 100% front maintenance is a very necessary engineering use for small pitch, which can effectively ensure the installation
2) thickness, the thinnest can be up to 60mm.
3) Better protection against dust damage to electronic components and PCB board.
4) More convenient disassembly and installation, saving time and effort.
GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 3






 Module Unit+Power Hot-plug
Communication + power hot-plug design are better to:
1. Reduce electromagnetic radiation and its interference with display.
2. Ensure the stability of communication and power supply, and reduce the failure rate.
3. Double hot-plug, simplify cabinet structure and increase the convenience of installation and maintenance.
GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 4



High Refresh Rate, Low Light High Grey Scale
High refresh PWM driving IC: VOD515(Made by Taiwan Corp), the main features of the
product include supporting 3840HZ high refresh and PWM low brightness high grey scale design

GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 5

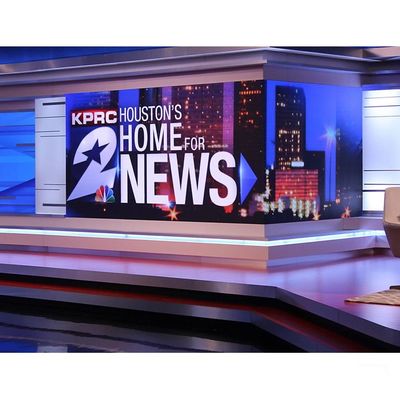

Applications:



Small Pixel LED display are widely used in different applications, the main application fields

are command and dispatch center, security monitoring, video conference, exhibition, radio and

television studio, meteorological information center, production safety monitoring, environment

monitoring, fire protection, maritime flood control, energy, electric power, finance, securities market,

shopping malls, hotels, airports, subway and so on



GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 6



GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 7
GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 8
GOB COB Full Color Video Display Walls Indoor Led Video Wall 480x480 9


Product Parameters
Model
VL4912
VL4915
VL4918
VL4925
Pixel Pitch(mm)
1.29mm
1.579mm
1.875mm
2.5mm
Application
Indoor UHD
Indoor UHD
Indoor UHD
Indoor UHD
Pixel Density (dots/m²)
600586
401084
284444
160000
LED Type
SMD1010
SMD1010
SMD1515
SMD2121


SMD1212


Brightness (cd/m²)
200~800nit adjustable



Module Size (mm*mm)
240mm*240mm



Module Resolution (dots*dots)
186*186
152*152
128*128
96*96
Cabinet Size (W*H*D)
480*480*60mm/960*480*60mm



Cabinet Resolution (dots*dots)
372*372/744*372
304*304/608*304
256*256/512*256
192*192/384*192
Cabinet Material
Die-casting Aluminum



Cabinet Weight (±0.25kg)
26kg/m²



Viewing Angle (Deg)
H:160°/V:140°



Refresh Rate (Hz)
>1920Hz



Viewing Distance (m)
>1m
>1.5m
>2m
>2.5m
Gray Scale (bit)
14bit



Max./Avg. Power Consumption(m²)
600W/100W~300W



AC Power Input(V)
AC 200~240V



AC Power Frequency (Hz)
50~60Hz



Level of Protection
Front: IP41/Rear: IP20



Maintenance
100% Front Service








FAQ :


A 1, Who is Longvision?
Q1, Based in Shenzhen, Longvision is an professional OEM/ODM-led display factory, our products are sold to more than 130 countries and regions all over the world.

A2, Can I get a sample order?
Q2, Yes, warmly welcome. Strong partnerships are the result of every small trial. Price would be negotiated welcome based on bigger quantity.

A3, How does Longvision do regarding quality control?
Q3, "Quality is the foundation of an enterprise" that's our faith. Our factory has gained CE, FCC, RoHS, and other certifications.

A4, What is your after-sales service?
Q4, We offer 100% guarantee on our product and 24hrs non-stop service, you can find us for technology help anytime. We have
professional engineers who can speak English.

A5, When will you make the delivery?
Q5, We can deliver the goods within 7~15 working days according to the size of your projects.
