Product Details:
|
| Application: | Indoor Fixed | Color: | Black |
|---|---|---|---|
| Panel Size: | 1000*250 | Pixel Pitch: | P1.9 P2.5 P2.9 P3.9 |
| Function: | SDK | Module Size: | 250*250mm |
| Module Resolution: | 64x64pixels | Cabinet Size: | 1000/750/500*250mm |
| Brightness: | 1000~1200nits | Refresh Rate: | 3840Hz |
| Material: | Aluminum Alloy Frame | Warranty: | 2 Years |
| High Light: | Longvision Indoor Led Display Screen,SDK Indoor Led Display Screen,SDK led panel tv |
||
|
Advantages

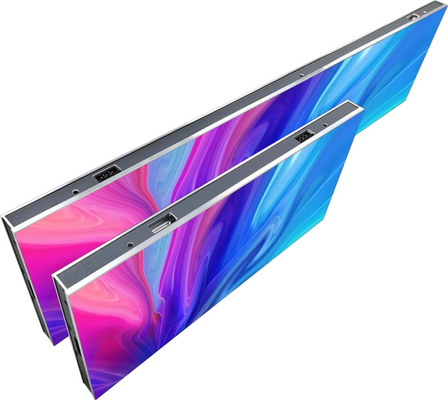

1, 2.9kg per panel and 33mm thickness, a space & installation-cost saver
2, Multiple size and mixed splicing available
3, Full-front maintenance, unlimited installation and convenient maintenance are the basics of it
4, Wall mounted, be able to be mounted onto the wall directly in any limited space
|
| Model | Indoor Series | ||||
| Pixel Pitch (mm) | 1.83 | 2 | 2.5 | 3 | 4 |
| Pixel Density (dot/m²) | 295664 | 250000 | 160000 | 105625 | 62500 |
| LED Type | SMD | ||||
| Brightness (CD/m²) | 800~1000 | 800~1000 | 800~1000 | 800~1000 | 800~1000 |
| Module Size (mm*mm) | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module Resolution (dot*dot) | 174*87 | 160*80 | 128*64 | 104*52 | 80*40 |
| Cabinet Size (L*W*H) | 960*320*60mm | 960*320*60mm | 960*320*60mm | 960*320*60mm | 960*320*60mm |
| 640*320*60mm | 640*320*60mm | 640*320*60mm | 640*320*60mm | 640*320*60mm | |
| Cabinet Resolution (dot*dot) | 522*174 | 480*160 | 384*128 | 312*104 | 240*80 |
| 348*174 | 320*160 | 256*128 | 214*104 | 160*80 | |
| Material | Die-casting Aluminum | ||||
| Viewing Angle | H: 140°/V: 140° | H: 140°/V: 140° | H: 140°/V: 140° | H: 140°/V: 140° | H: 140°/V: 140° |
| Refresh Rate (Hz) | 1920Hz～3840Hz | 1920Hz～3840Hz | 1920Hz～3840Hz | 1920Hz～3840Hz | 1920Hz～3840Hz |
| Best Viewing Distance | >1.8m | >2m | >2.5m | >3m | >4m |
| Gray Scale (bit) | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit |
| Max/Avg. Power Consumption (Wm²) | 500W/250W | 500W/250W | 500W/250W | 500W/250W | 500W/250W |
| AC Input Voltage (V) | AC 100～240V | AC 100～240V | AC 100～240V | AC 100～240V | AC 100～240V |
| Waterproof Level | IP40/ IP20 | IP40/ IP20 | IP40/ IP20 | IP40/ IP20 | IP40/ IP20 |
| Maintenance | 100% Front Service | ||||
