RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

Certification
China Shenzhen Longvision Technology Co., Ltd. certification
China Shenzhen Longvision Technology Co., Ltd. certification
I'm Online Chat Now

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

Large Image :  RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

Product Details:
Place of Origin: Guangdong, China
Brand Name: Longvision
Certification: CE FCC ROHS UL CCC
Model Number: LB Series
Payment & Shipping Terms:
Minimum Order Quantity: 2 Sets
Price: $1,059.00---$1989/Set
Packaging Details: wooden/carton case
Delivery Time: 4-10 Days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Set per Month

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

Description
Color: Black Red White Yellow Panel Size: 960*320mm
Pixel Pitch: P2 P2.5 P3 P5 Material: Die Casting Aluminum
Brightness: 4000~6000cd/sqm Life Span: 10000 Hours
Viewing Angle: 140 /140 Weight: 15kg
IP Rate: IP 65 Refresh Rate: 3840Hz
SMD Type: SMD1921 Network: 4G Wifi Wireless
High Light:

RGB Aluminum Taxi Top Led Display

,

Aluminum P5 Taxi Top Led Display

,

P3 P5 taxi top led sign

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5




Product Advantages

1, Patent structure design,aluminum case with oxidation treatment,coating

film for unti ultraviolet, outdoor painting for anti-rusting and anti-aging.

2, High tranparent pc cover that not turning yellow color or old in 10 years.
3, high level powersupply,beyond voltage,current load,short circuit will be protected,
work in -40°C~+70°C environment.
4, Web control and could manage in anytime and any location through web browser.
No need for download software.
5, Easy installtion bracket , fast maintenance structure.

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 0
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 1



Product Size

Here is standard size, special installation way should follow the car size.
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 2
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 3
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 4



Bracket installation

Easy design leads a quick way installtion of bracket.

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 5

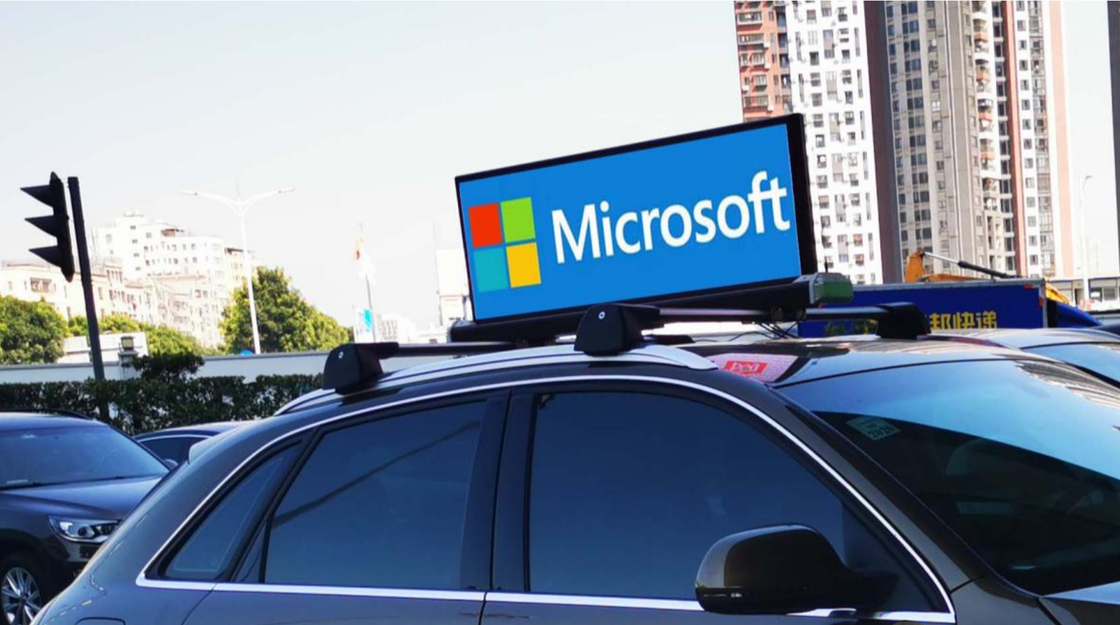

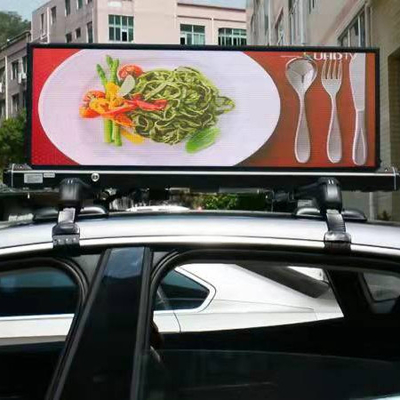

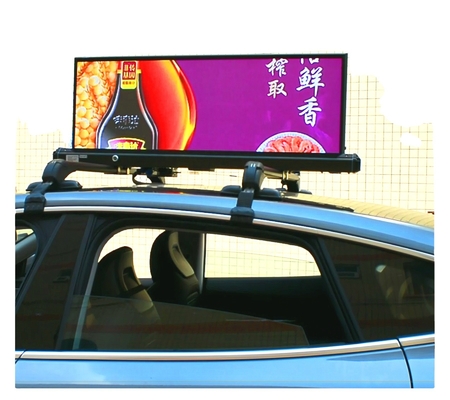

Sign installation

Each type of vehicle has different mounting racks.
Different lengths of mounting racks can be selected according to type to be installed.
The corresponding installation method can be designed according to different types
of vehicles.
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 6



Connection Schematic Diagram

Main cable connect with car battery and control cable connect with lighter position.
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 7



Control schematic

Supports 3G 4G WIFI Internet connection.
Quickly and simply change your content anytime, anywhere.
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 8
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 9



Slim and Light Weight

Slim and light architecture, Yaham taxi roof LED display cabinet weighs only 15kg.
The thinnest part of the cabinet measures only 5.8cm, aerodynamic design results
in low wind load.
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 10

Waterproof Testing

IP65 High protection, can adapt to any extreme enviroment.
RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 11





Product Parameters

Model
P2.5
P3
P4
P5
Pixel Pitch
2.5mm
3mm
4mm
5mm
Application
Outdoor


Outdoor
LED Configuration
SMD1921
SMD1921
SMD1921
SMD2727
Pixel Density (dots/㎡)
160,000
111111
62,500
40,000
Module size
160×160mm
192×192mm
256×128mm
320×160mm
Module Resolution
64×64dots
64×64dots
64×32dots
64×32dots
Cabinet Size960×320(Double Sided)
960×320(Double Sided)
960×320(Double Sided)

 960×320(Double Sided)

Cabinet Resolution
640×128dots
512×128dots
384×96dots
192×640dots
Cabinet Weight
15kg
15kg
15kg
15kg
IP Rating
IP65
IP65
IP65
IP65
Brightness Intensity
≥2500cd/㎡
≥2500cd/㎡
≥2500cd/㎡
≥5000cd/㎡
Viewing Angle
140°
140°
140°
140°
View Distance
>2m
>3m
>4m
>5m
Gray Scale
16bit
16bit
16bit
16bit
Max./Avg. Consumption (m²)
400W/130W
460W/150W
480W/160W
500W/160W
Operating Life
100,000hours



Refresh Frequency
≥3840HZ
≥3840HZ
≥3840HZ
≥3840HZ
Control Mode
Synchronous display with control PC by DVI



Operation Power
AC100/240 50/60HZ



Operating Condition
- 20℃~+50℃, 10~90% RH

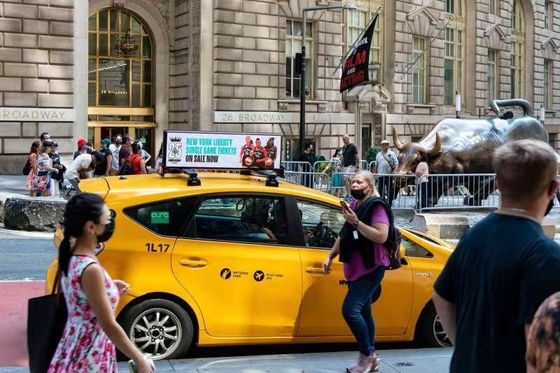

Applications :
Mainly used in oudoor environments car top led display,can show video,picture,words etc u want show advertising.
Of course, there are many models of the module you can choose(like:OUTDOOR P5,P6,P8,P10 ), and the cabinet is custom made.
Support languages in 12 countries: Chinese, English, French, Spanish, Arabic, Portuguese, Korean, Japanese, etc.

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 12

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 13

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 14

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 15



FAQ:

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable
for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven 250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and
quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality
material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including
module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
