Product Details:
|
| Application: | Indoor And Outdoor Advertising, Shopping Mall Supermarket Hotel Company | Brightness: | 1000nits |
|---|---|---|---|
| LED Type: | SMD2121 (3in1) | Refresh Rate: | 3840Hz |
| Life Span: | LED>100000Hours | IP Rate: | IP40 |
| Warranty: | 2-5 Years | Operation System: | Windows/Android/IOS |
| High Light: | RGB Smart Led Poster Display,IP40 Smart Led Poster Display,IP40 floor standing led display |
||
1. Lightweight and ultra-thin fashion design, perfect ad playback control.
2. The LED screen has the advantages of high refresh, high brightness, high contrast of color,
and the playback effect is superior to the traditional LCD screen.
3. Support SD card and U disk playback media, stored program files can be played in a loop.
4. Support WIFI and 3G/4G mode for maintenance and update of programs.
5. It can be set to automatically turn on and off every day, without manual maintenance.
6. Support cluster play and management, agree that the cluster mirror screen can agree to
design and update programs, saving time and effort.
7. The cabinet structure is designed with a modular frame and a metal body for easy installation,
disassembly and maintenance.
8. The exterior of the cabinet is equipped with an acrylic plate to protect the screen body.
|
Model
|
P2.5
|
P2.5
|
P3
|
P3
|
|||
|
Pixel Pitch
|
2.5mm
|
2.5mm
|
3mm
|
3mm
|
|||
|
Application
|
Indoor
|
|
|
|
|||
|
LED Configuration
|
SMD2121
|
SMD2121
|
SMD2121
|
SMD2121
|
|||
|
Pixel Density
|
160,000dots/㎡
|
160,000dots/㎡
|
111,111dots/㎡
|
111,111dots/㎡
|
|||
|
Module size
|
160X160mm
|
160X160mm
|
192X192mm
|
192X192mm
|
|||
|
Module Resolution
|
64X64dot
|
64X64dot
|
64X64dot
|
64X64dot
|
|||
|
Cabinet Size
|
640X1920X38mm
|
960X1920X38mm
|
576X1920X38mm
|
768X1920X38mm
|
|||
|
Cabinet Resolution
|
256X768dots
|
384X768dots
|
192X640dots
|
256X640dots
|
|||
|
Cabinet Weight
|
35kg
|
50kg
|
30kg
|
40kg
|
|||
|
IP Rating ( front/back)
|
IP40
|
IP40
|
IP40
|
IP40
|
|||
|
Brightness Intensity
|
≥1000cd/㎡
|
≥1000cd/㎡
|
≥1000cd/㎡
|
≥1000cd/㎡
|
|||
|
Viewing Angle
|
140°
|
140°
|
140°
|
140°
|
|||
|
View Distance
|
＞2m
|
＞2m
|
＞3m
|
＞3m
|
|||
|
Max./Avg. Power Consumption(W/m²)
|
900W/300W
|
1500W/500W
|
800W/260W
|
1100W/360W
|
|||
|
Refresh Frequency
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
|||
|
Control Mode
|
Synchronous display with control PC by DVI
|
|
|
|
|||
|
Operation Power
|
AC100/240 50/60HZ
|
|
|
|
|||
|
Operating Condition
|
- 20℃~+50℃, 10~90% RH
|
|
|
|
|||
Applications:

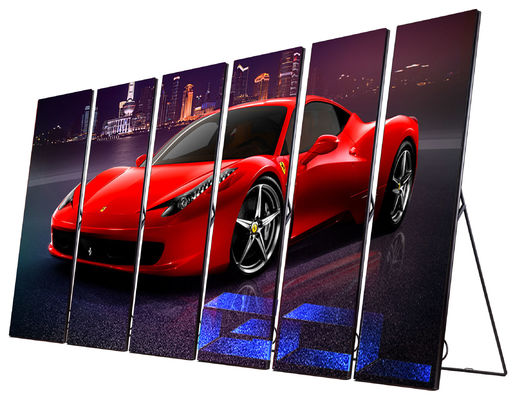

Commercial LED display screen 2.5mm applicationThis indoor movable adverts led poster
widely use for shops, hotel, wedding, meeting guidence, new product presentation, autocar 4S shop,
high-end cloth chain shops, metro station, airport, etc. This led poster is also called mirror led display.
