Product Details:
|
| Application: | Live Events Led Display, Outdoor Building Surface, Transparent Led Display, Indoor | Pixel Pitch: | P10 |
|---|---|---|---|
| Material: | Aluminum | Panel Size: | 1000*500mm |
| Brightness: | 800~4000nits | Warranty: | 2-5 Years |
| Refresh Rate: | 3840Hz | Weight: | 5kg |
| High Light: | 4000nits Video Wall Panel,P3.91 Video Wall Panel,FCC Transparent Led Screen |
||

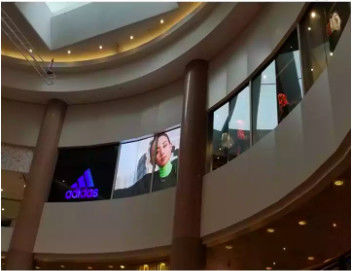

Description of LED Window Display
Transparent LED Display is an innovative LED window display, allows you to turn your glass window into a digital billboard, suitable for advertising. It is almost invisible from the outside of the building, and also make seeing-through visual effect. It uses front-lighting PCB design, easy to SMD produce to become high reliability. Modular panels and quick-lock design makes fast and convenient installation. For outdoor rental, the lamp beads can be fully sealed, with IP65 protection for indoor and outdoor options.
Specification of LED Window Display
| Main technical parameter | |
| Pixel pitch | 3.91-7.81mm |
| Driving mode | 7scan |
| Module resolution | 126*32dots |
| Cabinet size | 1000(W)*500(H)mm |
| Cabinet resolution | 256*64dots |
| Transparency | >=70% |
| Module quantity | 8PCS |
| Cabinet material | Aluminum profile |
| Cabinet weight | 7KG |
| Brightness | 3000CD/square meter |
| Viewing angle | 140/140Deg |
| Grey scale | 16bit |
| The optimal viewing distance | >=4M |
| Refresh rate | 1920HZ |
| Max power consumption | 800W/square meter |
| IP rating | IP43 |
| Life span | 100,000hours |
Famous Brands Raw Material Selection
1) LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective
phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.
Feature Of LED window display
1. High transparency effect: The distance between the dots of the transparent led display screen is different, and the light transmittance can be between 50-90%. The perspective effect makes the glass retain the function of the lighting perspective, and the LED lamp can hardly be seen from a distance. The lighting of the glass curtain wall is not affected.
2. Small footprint and light weight: The thickness of the main body of the screen is only 10mm thick. After the LED transparent screen is installed, it takes almost no space and does not hinder other facilities or structures near the glass curtain wall. The LED transparent screen weighs only 14kg/m2, and the load requirements on the glass curtain wall change very little after installation on the glass curtain wall.
3. Only need simple steel frame structure, saving a lot of cost: This product is light in weight, easy to install, does not require complicated supporting steel structure, and can save a lot of installation costs.
4. Easy and fast maintenance: indoor maintenance, which is fast and safe, saves manpower and material resources.
5. Saving the building lighting cost: If the LED transparent screen is installed, it can save a large part of the exterior wall lighting fixtures, and the LED screen is more attractive, which can save costs and have advertising benefits.
6. Energy saving and environmental protection: Its own power consumption is small, and the average power consumption is less than 280W/m2, which does not require traditional cooling system and air conditioning to dissipate heat.
7. Simple operation and strong controllability: It can be connected to the computer, graphics card, remote transceiver through the network cable, or can be replaced at any time by remote cluster wireless control.
Our Service
1. 7 Years professional led display manufacturer,
2. Shot delivery time: 5-15days.
3. Factory price.
4. OEM and ODM service
5. We can design special product for you.
6. 30% deposit for producing,70% balance to be paid before shipment.
7. EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.
FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of Led Display Screen, providing one-stop OEM & ODM service to all partners all over the world.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE, RoHS, ISO9001.
Q: How do you control the quality ?
A: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.
Q: What’s the product warranty?
A: We offer 12 months guarantee.
