P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel

Certification
China Shenzhen Longvision Technology Co., Ltd. certification
China Shenzhen Longvision Technology Co., Ltd. certification
I'm Online Chat Now

P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel

P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel
P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel

Large Image :  P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel

Product Details:
Place of Origin: Guangdong, China
Brand Name: Longvision
Certification: CE FCC ROHS UL CCC
Model Number: LEV Series
Payment & Shipping Terms:
Minimum Order Quantity: 2 Sets
Price: $299.00 - $687/Set
Packaging Details: wooden/carton case
Delivery Time: 3-8 Days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Square Meter/Square Meters per Month

P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel

Description
Application: Outdoor Advertising Color: Black
Panel Size: 1000*1000mm 500*1000mm Pixel Pitch: P10 P15 P25 P31 P50
Brightness: 3000~8000nits Warranty: 2-5 Years
Led Type: SMD3535 IP Rate: IP 67
Input Voltage: AC110V - AC240V Control System: Synchronous/Asynchronous/4G Wireles
High Light:

P50 Outdoor Transparent Led Screen

,

P31 Outdoor Transparent Led Screen

,

Transparent p10 led display panel



          P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel




Advantages

1, Independent plug and pull new technology for single light strip, to solve signal and power synchronously transmission problem

2, Strong tail board design, quick mounting clip foot, more safe and faster, high flatness

3, Unique heat sink design to improve heat dissipation, ensure long lifespan of LED lamp

4, IP67 waterproof, level 12 windproof, 100% VO, super high safety factor, to ensure long lifespan of LED lamp

P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 0

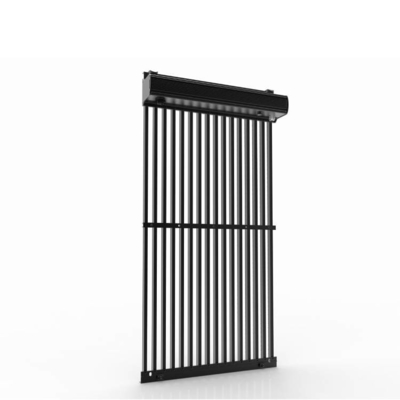

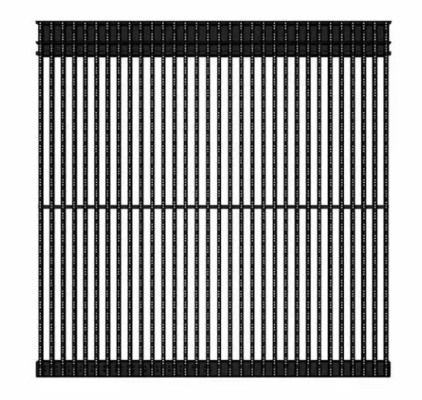

Ultra-Thin & Transparency
The outer frame is all-aluminum profile design, ultra-thin and light, the unit thickness is only 70mm, and the weight is 13KG/㎡;
the hollow design, light and wind, permeability 60%, has a strong resistance to wind pressure.





P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 1



Good heat dissipation

Good heat dissipation performance, no need to use air conditioners outdoors in hot

weather, saving installation and use costs





P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 2

Can be used in extreme environments
It can be used in a variety of environments, has the advantages of cold and heat resistance





P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 3

Waterproof and dustproof
Waterproof and dustproof, with a waterproof rating of IP67, it can be installed in an outdoor environment



P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 4
P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 5

High transparency, which can be 85% see-throuth screen


Applications:
1,Glass window, stage stage
The LED screen using table device SMD technology, modelling design is not restricted by enclosure structure, can be diverse according to tableaux customization, using LED display permeability and thin body, make the whole picture longer depth of field, is advantageous to the stage effect rendering and drive the atmosphere, the perfect theme expression stage.
2, Large shopping malls
Full of sense of science and technology transparent display, is undoubtedly the weapon of advertising activities, the interaction of modern art and store modeling, can effectively attract the attention of consumers, increase the advertising audience rate, so as to increase the customer flow, so that the advertising has become cool and beautiful.

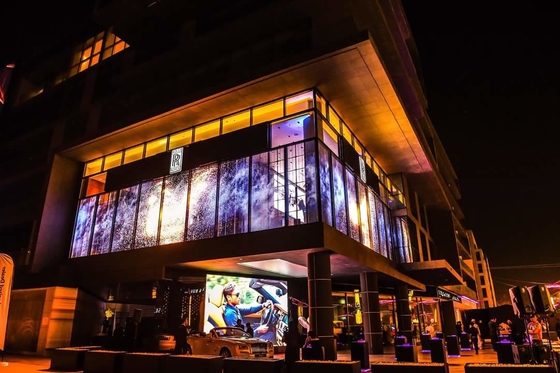

3, Glass window
As long as there is glass in the place can be installed transparent LED display equipment, installation is simple and fast, can be in the building, interior decoration, glass window decoration and other fields of installation design, for retail businesses to bring revolutionary changes.

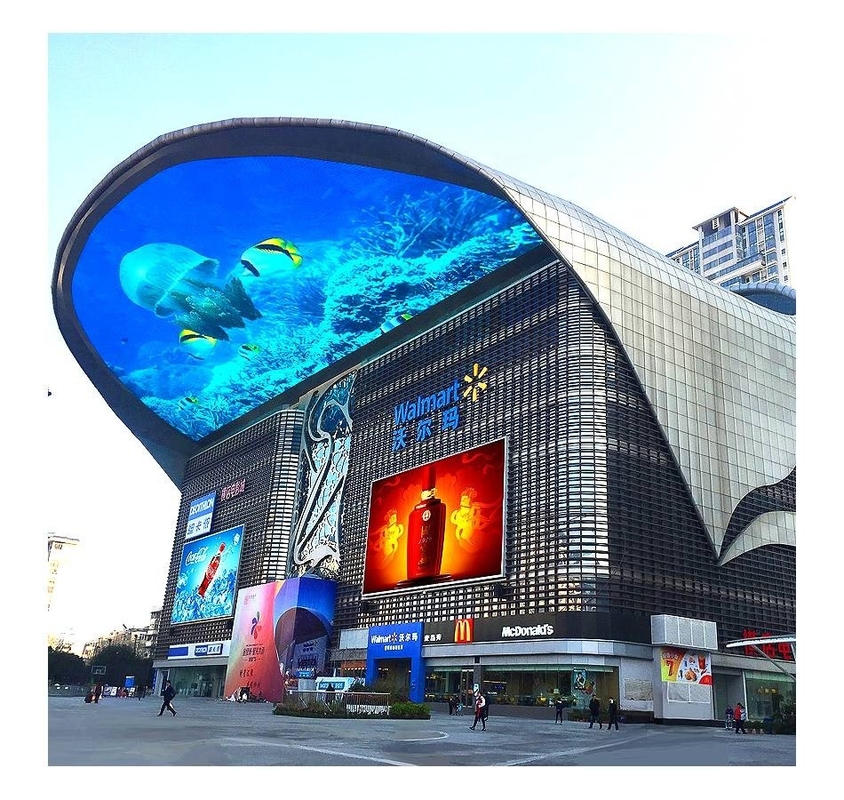

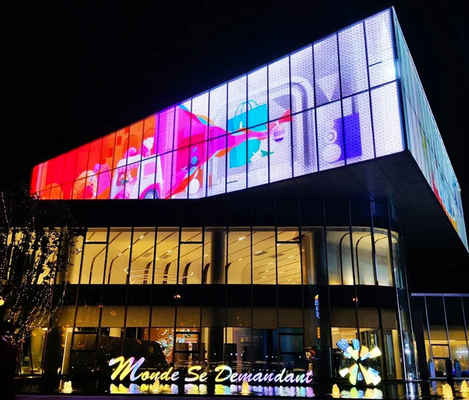

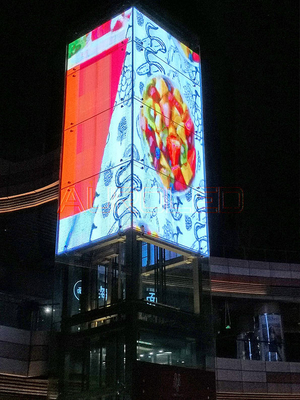

4. Architectural media
Architectural media has made great progress in recent years, especially in the suspension of glass curtain wall buildings, LED light strip screen, LED transparent canopy and other designs have become unique display solutions favored by businesses.
5. Science and technology venue
The customized transparent LED display screen brings high-tech effects to people in terms of modeling and viewing experience, and senses the fantasy and mystery of science and technology through the screen



P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 6
P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 7
P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 8
P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 9
P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 10
P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 11
P10 P15 P25 P31 P50 Outdoor Transparent Led Screen Display Panel 12
Specifications



Mode
LEV12
LEV15
LEV20
LEDs
1R1G1B
1R1G1B
1R1G1B
LED type
DIP346
DIP346
DIP346
Pixel pitch
12.5mm
15.625mm
20mm
Unit size
W500×H1000mm
W500×H1000mm
W520×H1000mm
Unit strip qty
10 pcs
16 pcs
13 pcs
Unit resolution
40×80 dots
32×64 dots
26×50 dots
Resolution
6400dots/㎡
4096dots/㎡
2500dots/㎡
Unit direction
Vertical
Vertical Horizontal
Vertical Horizontal
Transparency rate
20%
30%
36%
Brightness
≥4500nit
≥8,000-10,000nit
≥7500nit
Weight
15KG/㎡
15KG/㎡
15KG/㎡
Max consumption
480W/㎡
400W/㎡
375W/㎡
Adv consumption
160W/㎡
130W/㎡
125W/㎡
Viewing angle
H100°/V60°
H100°/V60°
H100°/V60°
Protection level
IP67
IP67
IP67
Tube structure
1 row, 4 columns.
1 row, 2 columns
1 row, 2 columns
Tube width
47mm
24mm
28mm
Thickness

113mm

Install depth

150mm

Heat dissipation

Convective heat dissipation

Wind dissipaion

Level 12

Power supply

Power supply with PFC

Installation

Fast install

Fire safety

10S/unit

Fire resistance

Full VO grade

Service

Front,Black

Control mode

steady state

Color temperature

3200-9300K

Refresh rate

60Hz

Working temperature

-40℃ to 60℃

Storage temperature

-55℃ to 120℃

Life time

≥100,000 hours

Input voltage

AC110-220V

Grey grade

16bit

Seismic capability
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes






FAQ :
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
