Product Details:
|
| Application: | Indoor And Outdoor Advertising, Shopping Mall Supermarket Hotel Company | Panel Size: | 640/960*1920mm |
|---|---|---|---|
| Pixel Pitch: | P1.8 P2 P2.5 P3 | Brightness: | 1000nits |
| LED Type: | SMD2121 (3in1) SMD1515 (3in1) | Refresh Rate: | 3840Hz |
| Life Span: | LED>100000Hours | IP Rate: | IP40 |
| Weight: | 45kg | Viewing Angle: | 160° 160° |
| Warranty: | 2 -5 Years | Port: | Shenzhen Port |
| High Light: | HDMI p3 smart led poster,4G p3 smart led poster,p3 illuminated poster display |
||
● Optional for handle ● Support wall mounting
● Support hanging ● Adjustable floor stand ● Movable double-sided poster
Commercial LED display screen applications

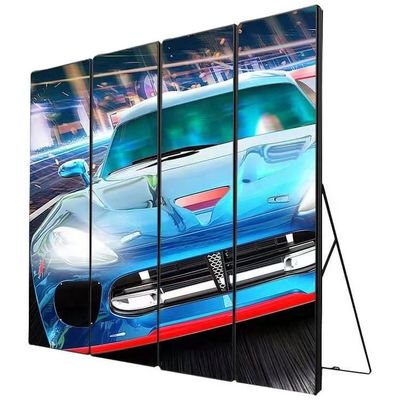

This indoor movable adverts led poster widely use for shops, hotel, wedding, meeting guidence, new product presentation, autocar 4S shop, high-end cloth chain shops, metro station, airport, etc. This led poster is also called mirror led display.
Flexible Installation
LED poster design based on flexible advers machine conception, so you can horizontally / vertically hang it on the wall or make it as floor standing.No need extra harware except for our professionl hanging pendant.
|
Model
|
P2.5
|
P2.5
|
P3
|
P3
|
|||
|
Pixel Pitch
|
2.5mm
|
2.5mm
|
3mm
|
3mm
|
|||
|
Application
|
Indoor
|
|
|
|
|||
|
LED Configuration
|
SMD2121
|
SMD2121
|
SMD2121
|
SMD2121
|
|||
|
Pixel Density
|
160,000dots/㎡
|
160,000dots/㎡
|
111,111dots/㎡
|
111,111dots/㎡
|
|||
|
Module size
|
160X160mm
|
160X160mm
|
192X192mm
|
192X192mm
|
|||
|
Module Resolution
|
64X64dot
|
64X64dot
|
64X64dot
|
64X64dot
|
|||
|
Cabinet Size
|
640X1920X38mm
|
960X1920X38mm
|
576X1920X38mm
|
768X1920X38mm
|
|||
|
Cabinet Resolution
|
256X768dots
|
384X768dots
|
192X640dots
|
256X640dots
|
|||
|
Cabinet Weight
|
35kg
|
50kg
|
30kg
|
40kg
|
|||
|
IP Rating ( front/back)
|
IP40
|
IP40
|
IP40
|
IP40
|
|||
|
Brightness Intensity
|
≥1000cd/㎡
|
≥1000cd/㎡
|
≥1000cd/㎡
|
≥1000cd/㎡
|
|||
|
Viewing Angle
|
140°
|
140°
|
140°
|
140°
|
|||
|
View Distance
|
＞2m
|
＞2m
|
＞3m
|
＞3m
|
|||
|
Max./Avg. Power Consumption(W/m²)
|
900W/300W
|
1500W/500W
|
800W/260W
|
1100W/360W
|
|||
|
Refresh Frequency
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
|||
|
Control Mode
|
Synchronous display with control PC by DVI
|
|
|
|
|||
|
Operation Power
|
AC100/240 50/60HZ
|
|
|
|
|||
|
Operating Condition
|
- 20℃~+50℃, 10~90% RH
|
|
|
|
|||
